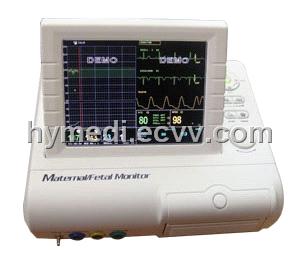

Fetal Monitor / Baby Monitor (HY800F)

Specifications

• Single or Twins Ultrasound transducer
• Data Graph and Trend Table Review of both mother and fetal
• Built-in thermal printer
• Built-in Network capability for connect with central monitoring software
• Programmable alarms
• All the colors and looks or the parameters can be customized
• Multi-face views, select focus on mother or fetal
• Storage of patient information and data

• Display: 8.4" Color TFT
• Resolution: 640x480
• Display Mode: Standard View, Fetal View, Mother View
• Indicator: Power indicator light, Alarm sound
• Interface: Socket for connecting fetal FHR, TOCO, and Fetal Movement sensor Socket for connecting mother' s ECG, NIBP and SPO2 sensor. Net Socket(RJ45) for communication cable with Central Monitoring Station Software.
• Power Supply: AC 100 ~ 240V, 50/60Hz, Power < 60VA
• Trend Graph: Resolution from 1s, 5s, 10s. Maximum time 96 hours.
• Trend Table: Resolution from 1s, 5s, 10s. Review up to 1000 items.
• Alarm: Adjustable High and Low limits. Three level audible and visual alarm.
• User Configuration: All the color of parameters and waves can be set according to user' s willing.

• Safety: Meet the requirement of IEC60601 series
• Type of Protection: Class II with internal electric power supply
• Degree of Protection: BF
• Dimension and Weight

• Temperature: 0℃~ +40℃
• Humidity: 15% ~ 95%

• Temperature: -20℃~ +60℃
• Humidity: 10% ~ 95%
• Patient range: Pregnant Adult

• Ultrasound Frequency: 2MHz
• Range: 50 ~ 210 bpm
• Resolution: 1bmp
• Accuracy: ± 2bmp

• Range: 0 ~ 100%
• Resolution: 1%
• Non-linear Error: < =± 8%
• Zero control: Manual

• Manual fetal movement mark

• Measurement Range: 0 ~ 100%
• Resolution: 1%
• Accuracy: ± 2%(70%~100%, Adult/Pediatric, non-motion), ± 3%(70%~100%, Neonate, non-motion) 0% ~ 69% unspecified
• Alarm Range: 0% ~ 100%
• Refreshing Rate: 1s

• Measurement Range: 25 ~ 250 BPM
• Resolution: 1bpm
• Accuracy: ± 3 BPM (non-motion)
• Alarm Range: 25 ~ 250 bmp
• Refreshing Rate: 1s

• Lead mode: 3-lead or 5-lead
• Lead selection: I, II, III, AVR, AVL, AVF, V
• HR range: 15 ~ 300 bpm
• ECG Waveform: 2 channels
• Accuracy: ± 2bpm or ± 2%, which is greater
• S-T segment detection range: -2.0mv ~ +2.0mv
• Arrhythmia analysis: 13 kinds of arrhythmia
• Alarm Range: 15 ~ 300 bpm

• Method: Oscillometry
• Mode: Manual, Auto, Continuous
• Measurement Range: 10 ~ 270mmHg
• Auto Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
• Resolution: 1mmHg
• Overpressure Protection: 300mmHg
• Alarm range: 10 ~270mmHg
