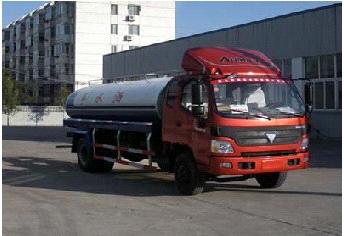

Aumark Water Tank Truck 10000L
| FOB Price: | 25,000.00 - 27,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | ro-ro shipment or bulk shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | naked |
Specifications
Aumark Water Tank Truck 10000L
Features of Water Tank Truck:
Tank volum 10000l, Carbon steel tank
Cummins engine 170hp , Euro 3
Water transport , sprinkling
Engine adopted imported pump
Foton High top truck , luxury driver' s cab interior trim.
Equipped with water pump sprinkler system .
Used for sprinkling and irrigating of environmental sanitation and landscaping, also used for water transportation.
|
Specification
|
Chassis brand
|
||
|
CHASSIS
|
Brand
|
Foton Aumark
|
|
|
Chassis Model (Model No. )
|
BJ1149VKPEG-FB | ||
|
Drive Mode
|
4 X 2
|
||
|
Tire
|
8.25R20
|
||
|
Brake
|
Air brake
|
||
|
Engine
|
Model
|
ISF3.8s3168 | |
|
Horsepower (Hp)
|
125kw /170hp
|
||
|
Dispalcement(ml)/Power(kw)
|
3760
|
||
|
Emission
|
Euro 3
|
||
|
Main Parameter
|
Overall dimension (MM)
|
L*W*H
|
8690× 2470× 2950 |
|
wheelbase
|
4700mm
|
||
|
Axles No.
|
2
|
||
|
Weight (KG)
|
Gross weight
|
14495
|
|
|
Payload weight
|
8650
|
||
|
Kerb weight
|
5650
|
||
|
Leaf spring No.
|
8/10+10
|
||
|
Approaching/Deparature Angle(° )
|
20/10
|
||
|
Front/Rear Track(mm)
|
1710/1680
|
||
|
Water Pump
|
65QZ-40/45
|
||
|
Pump Specification
|
Flow rate: 40m³ /min(1000L/min), Delivery lift height: 90m, Input shaft rotational speed: 1180r/min, Shaft power: 22.5kw, self-priming height: 6.5m, self-priming time: 1.5min/4m, pump diameter: 65mm, vertical suction height> 7m, spraying width > 14m, spraying range> 28m
|
||
|
Special Equipment
|
Preshoot/ lateral jet / virescence cannon φ 50
|
||
|
PTO
|
Special PTO for water tank truck,
|
||
|
Paint
|
High quality paint, Corlor as customer' s request
|
||
|
Material
|
5mm Carbon Steel
|
||
|
Water Tank dimensions
(L*Long axle*short axle) (mm) |
5200× 2090× 1250 | ||
|
Capacity
|
10000L
|
||
*The truck can sprinkle water both in front and at the back, also can spray from the side parts. With the work platform at the back, on which installed the high pressure gun. The gun can rotate 360 degrees all directions.
*Equipped with the Hangzhou Weilong sprikling water pump
*Accessory option the 20m hose reel. With gravity-flow valve, fire fighting hydrant, and self-primimg pump which can suck and drain off water.
*The tank body has adopt 4mm or 5mm carbon steel , Inside the tank body, we have used advanced butt welding technology and shot blasting disposal to make sure the tank be rustless.
*All the sprinkles have the spraying function. It can also embedded the chemical chassis, air-operated valve, high pressure chemical spray equippments, etc for the use of chemical-spraying.
Our factory product line: Fire fighting truck , Aerial working platform truck , Road wrecker / tow truck / recovery truck , Truck mounted crane , road sweeper , Hooklift garbage truck , Skip loader waster truck , Refuse collection truck , Trash compactor truck , Refrigerator truck , Oil/fuel tank truck , water/sprinkler truck , Dump truck , Concrete mixer truck , Cement tank transport truck , Semi-trailer .
