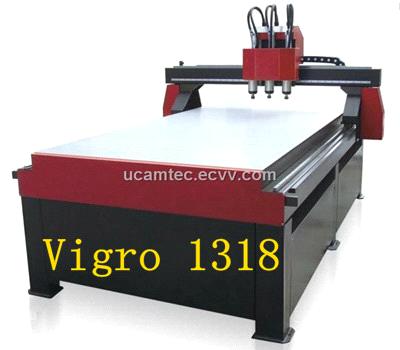

CNC Router Engraving Machine Vigro 1318
| FOB Price: | 10,000.00 - 15,000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Year |
| Shipping: | 15 Days After Payment / Shipping By Sea |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
Specifications
CNC Router Engraving Machine Vigro 1318
Technical parameters of CNC Wood Engraving Machine:
XY Guide: International advanced round rail
Z Guide: International advanced round rail
XYZ movement: 1300 x 1800 x 200mm
(1300x unlimitedx 200) when configured with rotary device)
Spindle power: 5.5kw X 3 PICS inverter driven spindle motor cooled by water
Spindle speed: (min/max) 8000 - 24000RPM
Speed max. : 0-90mm/s
Working speed: Max. 90mm/s
Stepper or servo motor: Stepping motor
XYZ accuracy: 0.04mm
Reposition accuracy: 0.01mm
Xyresolution: 0.025mm
Z resolution: 0.025mm
Table surface: Aluminium and acrylic
XY Z drive configuration Rolling ball screws from Germany
PACKING DETAILS:
Packing size of machine body (mm): 2400x3220x1750
Weight (kg): 1180KG
CNC Router Engraving Machine Vigro 1318
SOFTWARE:
Included Software Type3 V4.3 English (Compatible with Win98/Win2000/XP)
Software transmission language: G-Code. HPGL
Interface: RS-232 Serial Port/USB
RUNNING CONDITION:
Spindle cooling system: Water cooled
Spindle collet ER25
Voltage 220VAC/50-60Hz
Running environment 0-35C, humidity: 10-70 percent
CNC Router Engraving Machine Vigro 1318
Application
Applied to the industries of advertising marking, stamps processing, art crafts production and some special accurate instrument apparatus processing.
Processed finals: Metal, embossed sign, metal foil moulds, small acticles, battery carbon plate, staniless steel chest-brand, copper stampls, jade stamps, marking on the wok-pieces, copper electrodes, punching moulds and thermos dies, ect.
| Subjects | Vigro 1318 |
| X, Y Working Stroke | 1300mm * 1800mm |
| Z Working Stroke | 200mm |
| Control command set | G-code , NC -code, HPGL code |
| CNC System | DSP CONTROL SYSTEM |
| Driving system | Stepper motor with Leadshine drive |
| Spindle Nose | ER25 |
| Runing Speed | 900mm /min |
| Rapid Tracel Speed (Feed speed) | 300mm /sec |
| Step Pitch | 0.01mm /step |
| Speed of Cutting Feed | 150 -2400mm /m |
| Speed of Spindle | 8000-24000RPM |
| Power of Spindle Motor | 5.5kw x 3 PICS |
| Frequency Conversion | |
| water-cooled motor | |
| Machine Power | 7.5KW |
| Interface | RS-232 Serial Port/USB |
| Software compatbility | Wentai V8, TYPE 3, ARTCAM, MASTERCAM, ARTGRAVE, JDPAINT. ETC |
| Software resolution | 0.001mm |
| Mechnical Resolution | 0.02mm |
| Position Accuracy | plus/minus 0.01mm |
| Motion Unit | high precision ballscrews (X, Y, Z Axis) linear guided rail imported |
| Diameter of Tool (collect) | 3.175mm , 4mm , 6mm |
| Power Supply | AC220V or AC110V |
