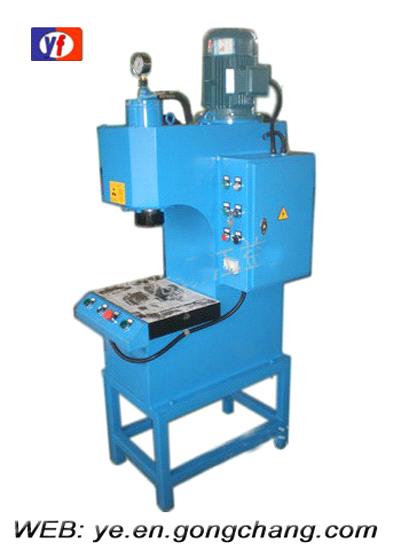

YJ42 series coil shaping hydraulic press

Inquiry Now

Product Details

Specifications

YJ42 series coil shaping hydraulic press, Apply PLC control method.

　The working pressure of indenter can be stable adjusted by control botton among 5T～63T～100T with the indication.The adjustment precision is 500kg.

　Pressure plate will be up and down in the operation process by pressing button,during which you can stop and maintain pressure in any position until you give the new direction.Pressure maintaining error is less than 500kg.

　The three motions of pressure plate up and down,roller path up and down,feed plate(optional)forward and backward is interlock with each other.

　Set power instructions,buzzer and other components on the operating panel:set pressure adjustment button and relative indicating devices;set the function buttons of pressure plate up and down.roller path up and down,horizontal forward and reset.emergency stop,etc.In order to avoid misoperation,adopt two hands two buttons to make pressure.

Main Technical Parameters

Serial number Project Unit YJ42-63T YJ42-100T YJ42-160T

1 Nomial KN 630 1000 1600

2 The maximum working pressure of the fluid MPa 20.3 26.3 25

3 Max.stroke of slide mm 500 500 600

4 Max.stroke of knock out mm 800 800 1000

5 Height of table above floor mm 730 730 730

6 Throat depth mm 380 380 475

7 The size of the working platfom Left Right mm 800 800 1000

Front Rear mm 400 400 400

8 Slippe speed Idie stroke down m/s 39 36 24

Return m/s 84 98 65

9 The height above the floor mm 2100 2680 3100

10 Motor power KW 7.5 11 15
