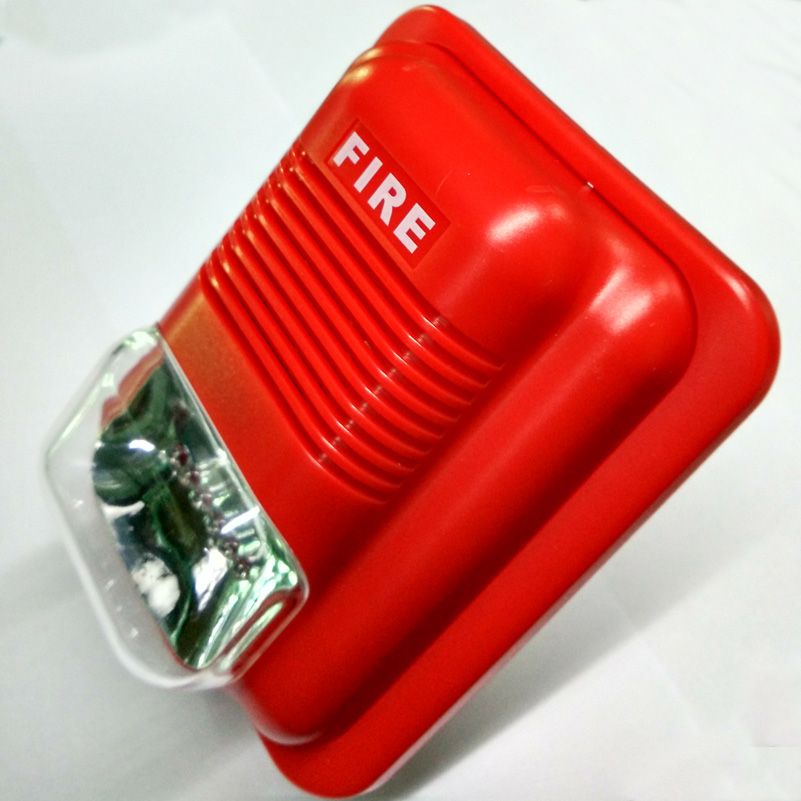

2-Wire High Sound Level Conventional Sounder Strobe Sound Alarm Audible Visual Fire Siren
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | FOBshenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | netural packing |
Quick Details
- Usage: Fire
- Brand Name: Zoanco
- color: red
- GSM Frequency: -
- Power: 24V
- Model Number: SG109
- color: red
- Executive standard: ce
- Operating Voltage: 16VDC to 30VDC
- Product name: Conventional Sounder Strobe
- Alarm Current: < 50mA
- Ambient humidity: <95%RH
- Sound level of alarm: more than100dB
- Flash Intensity: >75CD
- Flash Period: <1S
- Life of flash light: >40000times
Specifications
Skype firealarm87 /wechat 15220176087
Conventional Sound Strobe
SPECIFICATIONS
Operating Voltage Range: 16 to 30 VDC Volts
Alarm Current 100 to 150 mA@ 24 VDC
Strobe Flash Rate: 1 flash per second
Strobe Lifetime: Minimum 40000 times
Alarm Sound Intensity: Minimum 100dB
Alarm Sound Tune: Selectable: I-Ambulance, II-Police Car, III- Fire-engine
Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing
Operating Temperature Range: -10C to 50C (14F to 122F)
Input terminalWire Gauge: 12 to 18 AWG
Dimensions: Length160mm, Width 117mm, Depth 46mm
Weight: Net Weight 236g, Gross Weight 285g
BEFORE INSTALLING
NOTICE: this manual should be left with the
Owner/user of this equipment.
GENERAL DESCRIPTION
the SG109 Sound Strobe of notification appliances offers
A wide range of Sound/strobes, for wall and ceiling
Applications, indoors and outdoors. They are designed to
Be used in 24 volt DC systems.
Loop Design and Wiring
the system designer must make sure that the total current
Drawn by the devices on the loop does not exceed the
Current capability of the panel supply, and that the last
Device on the circuit is operated within its rated voltage.
When calculating the voltage available to the last device,
It is necessary to consider the voltage drop due to the
Resistance of the wire. the thicker the wire, the smaller
the voltage drops. Wire resistance tables can be obtained
from electrical handbooks.
INSTALLATION
NOTE: All wiring must conform to applicable local
Codes, ordinances, and regulations.
Mounting Indoor Wall or Ceiling Products
1. Attach mounting plate to junction box.
2. Connect field wiring to terminals
3. to attach product to mounting plate.
4. Secure product by tightening the two mounting screws
in the front of the product housing.
