Specifications
Production introduction
1. JDL-3 type of Multi-medium Filter
The equipment is a hermetically sealed chamber made of 304 stainless steel
which is set inside gritted rod, therefore get filtrated and clean. The equipment
is widely used in petroleum industry, medicine industry, brew manufacturing
and beverage industry. It is an idea equipment to produce high quality water.
Pressure allowance: 8.8 Kgf/mm2
Pore size of the filter media: 5 um
The equipment is a hermetically sealed
Chamber made of 304 Stainless.
Production Capacity (t/h): 3
1. JDL-3 type of Multi-medium Filter
The equipment is a hermetically sealed chamber made of 304 stainless steel
which is set inside gritted rod, therefore get filtrated and clean. The equipment
is widely used in petroleum industry, medicine industry, brew manufacturing
and beverage industry. It is an idea equipment to produce high quality water.
Pressure allowance: 8.8 Kgf/mm2
Pore size of the filter media: 5 um
The equipment is a hermetically sealed
Chamber made of 304 Stainless.
Production Capacity (t/h): 3
Dimension (mm): Φ500*1800
2. CHT-3 type of Active Carbon Filter
The equipment is a hermetically sealed chamber made of 304 stainless steel
which is set inside gritted rod, therefore get filtrated and clean. The equipment
is widely used in petroleum industry, medicine industry, brew manufacturing
and beverage industry. It is an idea equipment to produce high quality water.
Outfit: One set of A.B.S Operating value.
Production Capacity (t/h):3
Dimension (mm): Φ500*1800
3. JML-3 type of Precision Filter
The filter medium of the precise filter is made of micro-hole film, it is the
modern advanced equipment for the filter and widely used in fine filter clearing
and sterilizing filter in medicine, electrical, food industries.
Working pressure (Mpa): ≤0.3
Production Capacity (t/h): 3
Dimension (mm): Φ500*1200
4. UF-3 Hollow-Fiber Ultra-filter
It is used for making mineral water, organic objects, microorganism, colloids,
micro-granules, etc. That are not eliminated by the previous filters in the water
will be thoroughly eliminated. But the healthful microelements in the water are
reserved.
Advanced membrane separating technology is used. The ultra-filter adopts
dissymmetrical semi-permeable film which is made from macromolecule
material with special process. The raw liquid flows under pressure, inside or
out side the film. The macromolecule substance and colloid particles in the raw
liquid are clogged at the film surface and are brought away by circulating wraw
liquid. Then the raw liquid becomes inspissated, and further more, the
substance in liquid is separated, concentrated.
The equipment is a hermetically sealed chamber made of 304 stainless steel
which is set inside gritted rod, therefore get filtrated and clean. The equipment
is widely used in petroleum industry, medicine industry, brew manufacturing
and beverage industry. It is an idea equipment to produce high quality water.
Outfit: One set of A.B.S Operating value.
Production Capacity (t/h):3
Dimension (mm): Φ500*1800
3. JML-3 type of Precision Filter
The filter medium of the precise filter is made of micro-hole film, it is the
modern advanced equipment for the filter and widely used in fine filter clearing
and sterilizing filter in medicine, electrical, food industries.
Working pressure (Mpa): ≤0.3
Production Capacity (t/h): 3
Dimension (mm): Φ500*1200
4. UF-3 Hollow-Fiber Ultra-filter
It is used for making mineral water, organic objects, microorganism, colloids,
micro-granules, etc. That are not eliminated by the previous filters in the water
will be thoroughly eliminated. But the healthful microelements in the water are
reserved.
Advanced membrane separating technology is used. The ultra-filter adopts
dissymmetrical semi-permeable film which is made from macromolecule
material with special process. The raw liquid flows under pressure, inside or
out side the film. The macromolecule substance and colloid particles in the raw
liquid are clogged at the film surface and are brought away by circulating wraw
liquid. Then the raw liquid becomes inspissated, and further more, the
substance in liquid is separated, concentrated.
5. SugaSugar Melting Pot
sugar melting pot is used to melt sugar into syrup through its electrothermal
tube.
6. Syrup Filter
The syrup filter mainly applies to filt syrup for removeing sundries and smell.
Then the syrup will become clear,transparent and odourless
Filtering area: 0.15m2.
Specs of filtering net: 80~120 mesh.
Maximum working pressure: 0.294 MPa.
Flow rate: 500 L once
Weight: 50kg
7. Mixing tank
This mixing tank which is made of SUS304 stainless steel is designed and
manufactured strictly according to requirement of Food Sanitation
Specification.
It can be suitable for many kinds of media to mix and store. It equips with a
high-speed forcible agitator to mix media rapidly.
sugar melting pot is used to melt sugar into syrup through its electrothermal
tube.
6. Syrup Filter
The syrup filter mainly applies to filt syrup for removeing sundries and smell.
Then the syrup will become clear,transparent and odourless
Filtering area: 0.15m2.
Specs of filtering net: 80~120 mesh.
Maximum working pressure: 0.294 MPa.
Flow rate: 500 L once
Weight: 50kg
7. Mixing tank
This mixing tank which is made of SUS304 stainless steel is designed and
manufactured strictly according to requirement of Food Sanitation
Specification.
It can be suitable for many kinds of media to mix and store. It equips with a
high-speed forcible agitator to mix media rapidly.
8. SyruSyrup cooling tank
This syrup cooler uses M series compressor from France. It could cool down
normal temperature syrup, which is pumped into the cooler, to lower preset
temperature. Lower temperature from the cooler would be fed into beverage
mixer. This is accessory equipments on carbonated drink producing line.
Compressor Type:2F6.3-S/600
Volume: 300L
Outlet Syrup Temperature:0-5degree
Refrigeration:16720kj/h
9. Cold drink tank & Refrigerant device
The cold drink water tank and refrigerator unit is the necessary equipment for
producing carbonated drink lines. The refrigerator is used to chill the
carbonated drink out from the drink mixer. The cold drink water tank is to keep
the cooled drink cold. The cooling result is excellent and it's an ideal unit for
carbonated drink industries.
This syrup cooler uses M series compressor from France. It could cool down
normal temperature syrup, which is pumped into the cooler, to lower preset
temperature. Lower temperature from the cooler would be fed into beverage
mixer. This is accessory equipments on carbonated drink producing line.
Compressor Type:2F6.3-S/600
Volume: 300L
Outlet Syrup Temperature:0-5degree
Refrigeration:16720kj/h
9. Cold drink tank & Refrigerant device
The cold drink water tank and refrigerator unit is the necessary equipment for
producing carbonated drink lines. The refrigerator is used to chill the
carbonated drink out from the drink mixer. The cold drink water tank is to keep
the cooled drink cold. The cooling result is excellent and it's an ideal unit for
carbonated drink industries.
10. Beverage mixer
Functions and Characteristics
This machine is mainly used to produce carbonated drinks, such as cola, club
soda etc.
A. This machine adopts advanced technology – Static state mixer, large
acreage for liquid, low lost of resistance, high efficiency, simple configuration.
Adopt the centrifugal pump to ensure the performance of the machine.
B. Precise mixing proportion, easy to adjust, you can adjust the proportion
capacity and proportion between water and syrup.
C. It is easy to adjust the gas volume. According to the gas volume
requirements, you can adjust.
D. There is automatic control system/
Specification
Model:QHS-2500
Production capacity (L/h): 2500
Syrup and water adjusting rate: 1:3-1:10
Gas amount rate (CO2 : H2O) :> 2.5
Mixing precision (%): < 2
Cooling water inlet temperature (ºC) :0-4
Cooling water inlet pressure (MPa): 0.15-0.25
Syrup inlet temperature (ºC): 2-8
Syrup inlet pressure (MPa) :0.1-0.3
Inlet pressure of carbon dioxide (MPa): 0.7-0.82
Purity of carbon dioxide (%): 99.9
Functions and Characteristics
This machine is mainly used to produce carbonated drinks, such as cola, club
soda etc.
A. This machine adopts advanced technology – Static state mixer, large
acreage for liquid, low lost of resistance, high efficiency, simple configuration.
Adopt the centrifugal pump to ensure the performance of the machine.
B. Precise mixing proportion, easy to adjust, you can adjust the proportion
capacity and proportion between water and syrup.
C. It is easy to adjust the gas volume. According to the gas volume
requirements, you can adjust.
D. There is automatic control system/
Specification
Model:QHS-2500
Production capacity (L/h): 2500
Syrup and water adjusting rate: 1:3-1:10
Gas amount rate (CO2 : H2O) :> 2.5
Mixing precision (%): < 2
Cooling water inlet temperature (ºC) :0-4
Cooling water inlet pressure (MPa): 0.15-0.25
Syrup inlet temperature (ºC): 2-8
Syrup inlet pressure (MPa) :0.1-0.3
Inlet pressure of carbon dioxide (MPa): 0.7-0.82
Purity of carbon dioxide (%): 99.9
Processing presure (MPa): 0.45-0.55
Motor power (kW): 2.5
Size (mm): 2300x1850x2000
Weight (Kg): 1550
Motor power (kW): 2.5
Size (mm): 2300x1850x2000
Weight (Kg): 1550

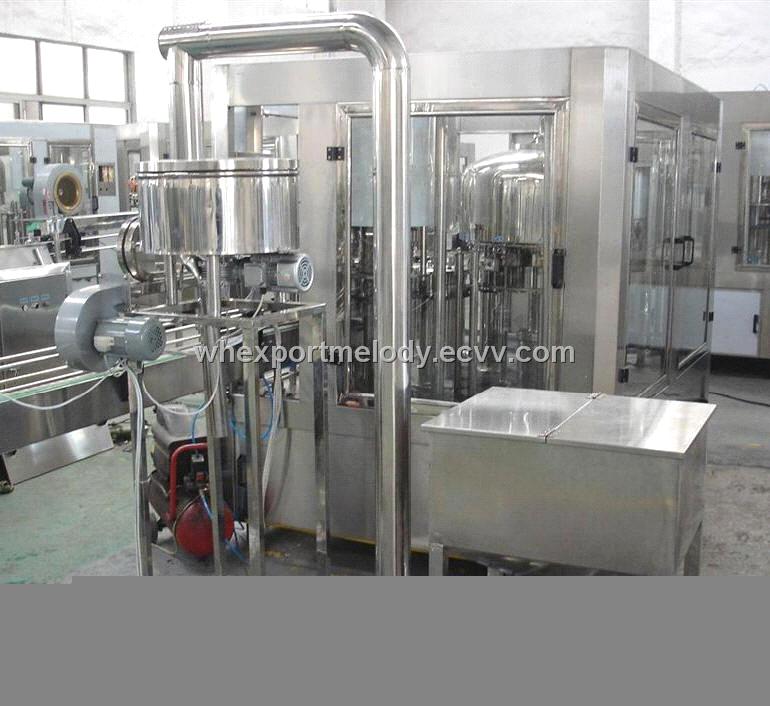

We can offer you full automatic Water & Carbonated drink filling line ,As the leading beverage bottling machinery in china, we own more than 500 production lines running all over the world.
Main Products: Three-in-one filling machine (include rinser, filler, capper).
1.1000-30000 BPH Table-Water Bottling Line;
2.1000-30000 BPH Hot Bottling Line;
3.1000-20000 BPH Carbonated Beverage Bottling Line;
4.50-1500 Barrels/Hour Filling Line, 3-Gallon & 5-Gallon Water Filling Line;
5. Water Treatment;
6. Carbonating Mixer;
7. Turn Key Project.
Main Products: Three-in-one filling machine (include rinser, filler, capper).
1.1000-30000 BPH Table-Water Bottling Line;
2.1000-30000 BPH Hot Bottling Line;
3.1000-20000 BPH Carbonated Beverage Bottling Line;
4.50-1500 Barrels/Hour Filling Line, 3-Gallon & 5-Gallon Water Filling Line;
5. Water Treatment;
6. Carbonating Mixer;
7. Turn Key Project.
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
Beverage Filling Machine from this supplier
FOB Price: 20000.00-50000.00 USD/Set
Min Order: 1 Set
Min Order: 1 Set
FOB Price: 20000.00-50000.00 USD/Set
Min Order: 1 Set
FOB Price: 20000.00-50000.00 USD/Set
Min Order: 1 Set
More products from other suppliers
Min Order: 1 Set
Min Order: 1 Set
FOB Price: 5,000.00-20,000.00 USD/Set
Min Order: 1 Set
FOB Price: 250.00-320.00 USD/Unit
Min Order: 1 Unit
FOB Price: 896.00-1,057.88 USD/Piece
Min Order: 1 Piece
FOB Price: 265.00-325.00 USD/Set
Min Order: 1 Set
Maintenance Beverage Filling Machine Suppliers :
Can't find a suitable Supplier or product? Entrust ECVV to purchase the well-chosen Chinese products with high cost performance.
Learn More>> Start Safebuy OrderCommunicate with Supplier
Sourcing from ECVV
Contact Us
