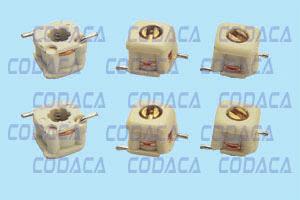

tunable coils, variable inductor, molded coils, Air core, adjustable inductor, RF inductor

FOB Price:	0.00 - 0.10 USD/Piece
Supply Ability:	1,000,000 Piece/Pieces per Day
Shipping:	FOB Shenzhen
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	bag

Specifications

MDS-0504U feature:

Molded with resin and with high heat resistant soldering.

High stability.

Low adjustable SMD molded coils.

Firm structure.

Frenquency range: 30MHZ-150MHZ.

Temperature coefficient: 150ppm/ºC.

Lead free products RoHS complaint.

Adjustable inductance value, alternate of a brass core will increase the usable frequency range of any specific coils form, but the inductance value will be decreased; if want to increase inductance value,ferrite magnetic core with low Q will be substitute.

When use of a Ferrite or Carbon core, the inductance minimum is measured with core 1/2 way out of top bobbin.

When use of an Aluminum or Brass core, the inductance maximum is measured with core 1/2 way out of top bobbin.

APPLICATION:

Widely used in: ANT, RF &OSC Coils. FM radio. TV receiver. Transceiver. Car, wireless telecommunication and RF electronic application.
