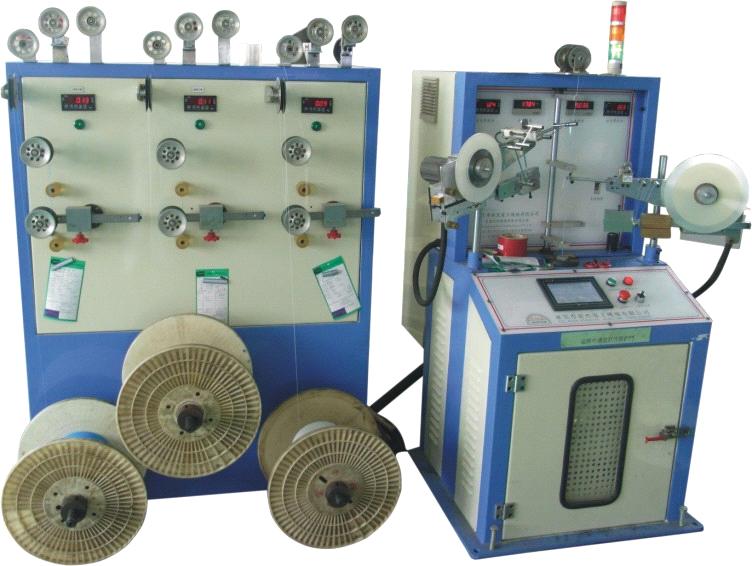

300mm vertical single-twist machine

Supply Ability:	10 Set/Sets per Month
Shipping:	FOBshenzhen
Payment Terms:	L/C, T/T, cash

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden case or by your request

Specifications

main advantage
1.Pitch accurate
2.High output and high quality
3.Speed :MAX1200rpm
4.Tension stability
5.uses widely

vertical arm-single twisting machine

1.adopt sine changing-frequence changer,other electricity-controlling devices adopt Omron or RKC device
2.main motor adopt Servomotor
3.it is easy to operate , save human resource

4.test the tension online, not need to change gear when you want to change pitch, using human-computer interface to adjust

Applicable core wire	AWG32~AWG42
MAX twisted OD	3.0mm
Uses	HDMI,DP,USB,CAT-7 and other high-frequency lines, data lines, electronic wire and core wire twisted pair and multi-stranded
Twist pitch range	5~25mm(according to clients)
MAX twist speed	1200r/min
Pay-off bobbin size	300-400ABS pay-off bobbin
Take-up bobbin size	400ABS take-up bobbin
Pay-off power	1/2HP
Take-up power	380V/50HZ/1.1KW including inverter
Pay-off tension control	5kg Taiwan import tension auto controller
Take-up tension control	electromagnetic powder clutch and auto tracking
Wrapping tension control	5kg tension controller .can be adjusted
