Ramway Techology Development Co., Ltd.
China Manufacturer with main products: Relay, Latching Relays |

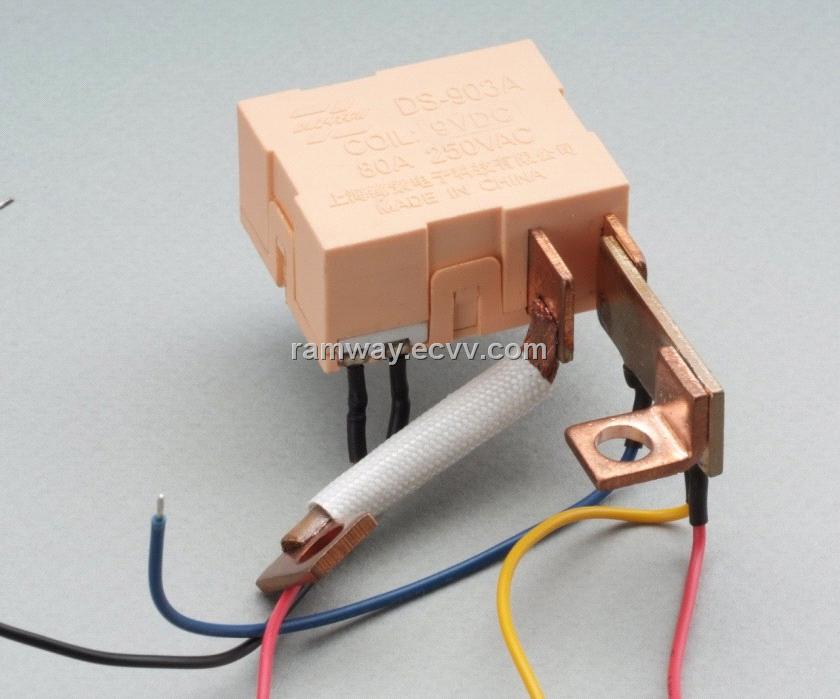

Magnetic latching relay DS903A 80A
| Supply Ability: | 7,000 Piece/Pieces per Day |
|---|---|
| Shipping: | within 30 days, port Shenzhen |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangxi in China |
| Packaging Details: | carton |
Specifications
Magnetic latching relay DS903B 80A
Dimensions(mm): 39.2x31.7x17.3
Contact Arrangement: 1A/1B
Contact Material: Silver alloy
Contact Rating: 80A,250VAC
Coil Voltage:9~12V
Contact resistance: 2mΩ Max
Max disconnection Voltage :250VAC/110VDC
Max disconnection Power:15000VA
Coil pulse width:50msec.Min
Operation time: 20msec.Max
Comeback time: 20msec.Max
Insulation Resistance: Min.500MΩ (500VDC)
Dielectric Strength (Contact to Contact):1500 VAC 50/60Hz (1 Minute)
Insulation Resistance: Min.500MΩ (500VDC)
Dielectric Strength (Contact to Contact):1500 VAC 50/60Hz (1 Minute)
Dielectric Strength (Coil to Contact): 4000 VAC 50/60Hz (1 Minute)
Electrical Life:50000 OPS
Mechanical Life:500000 OPS
Ambient Temp: -40~+70°C
Weight: 50g
