Hubei Eguard Environmental Equipment Co., Ltd.
China Manufacturer with main products: Tire Recycling Machinery, Waste Tire Recycling Line |

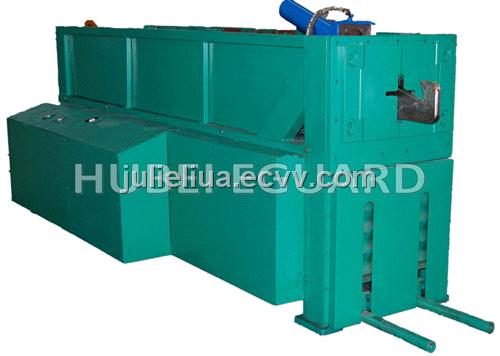

Wire bead extractor
| Supply Ability: | 4 Set/Sets per Year |
|---|---|
| Shipping: | Ocean |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Wood box |
Specifications
- Application
Pull out the bead of the tire under the normal temperature. The purpose is to protect the subsequence blades in the other machine in the whole processing system.
Advantage:
1. Hydraulic system repeated drawing, full circle and half circle steel are both drawn smoothly;
2. Oil is supplied to Hydraulic station using double vane pump, double vane pump supplying oil when drawing cylinder is extending, so can make it quickly feed. Single vane pump supplying oil when drawing, lighten motor load current, can reduce energy consumption efficiently;
3. Drawing cylinder keeps the original speed, improve the working efficiency and service life of control valve;
4. Manual and automatic changeable ways of working, simple operation;
5. High efficiency, simple structure, work stable, Small space.
-
Main Technical Parameters
|
Main motor power(kw)
|
11
|
|
Pressure for drawing(Mpa)
|
11-13
|
|
Maximum working pressure for drawing(Mpa)
|
16
|
|
Pressure for pressing for pressing(Mpa)
|
9-11
|
|
Maximum working pressure for pressing(Mpa)
|
13
|
|
Maximum outer diameter(mm)
|
1200
|
|
Working length for drawing(mm)
|
1250
|
|
Capacity(PCS/h)
|
30
|
|
Weight(kg)
|
2083
|
|
Dimension(mm)
|
3830×1050×1370
|
