>Products Catalog > Laser Engraving & Cutting Machine > Auto Feeding Laser Cutting Machine-Laser Engraver (UT-1610AF)

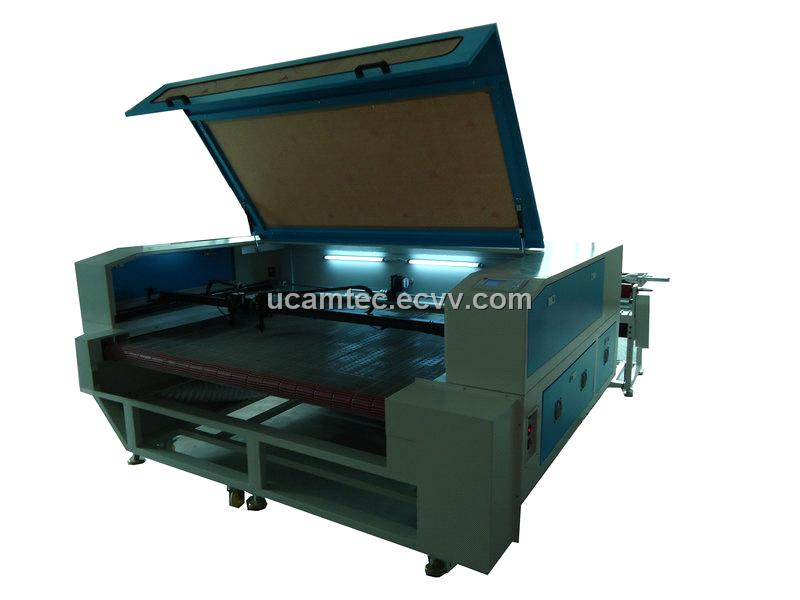

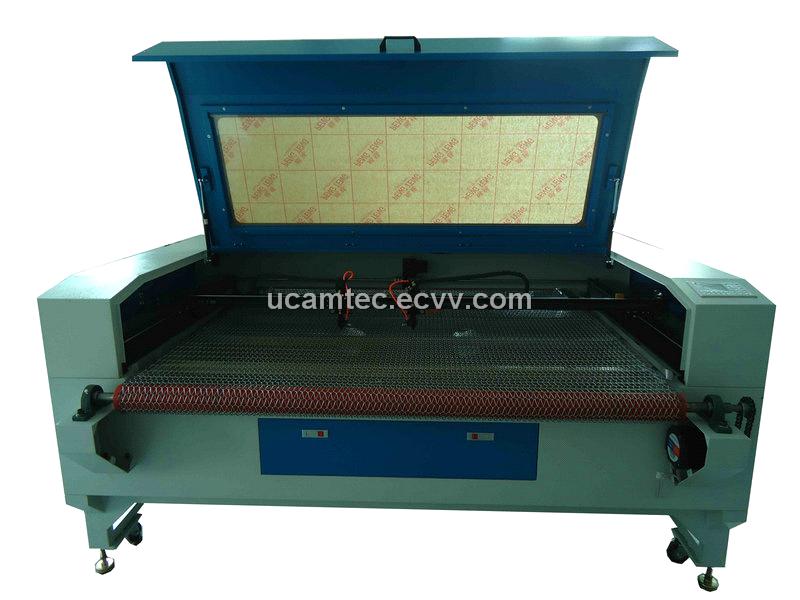

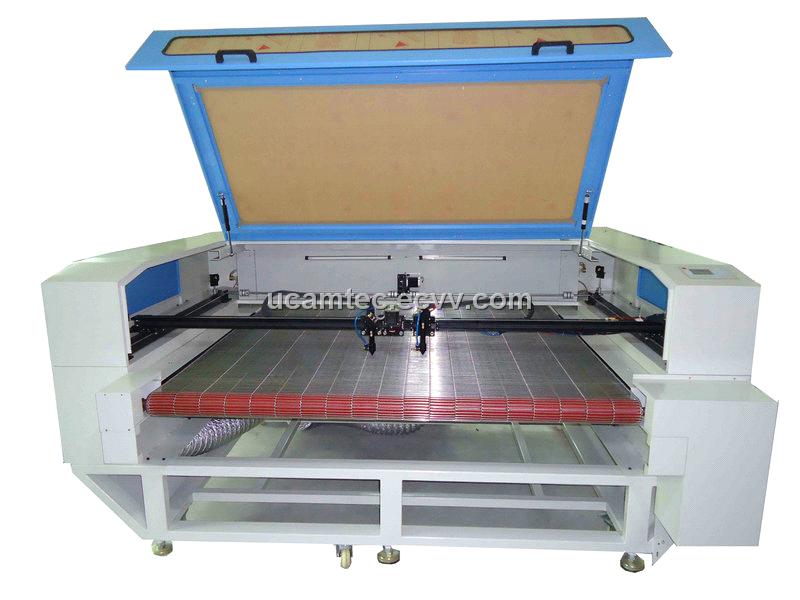

Auto Feeding Laser Cutting Machine-Laser Engraver (UT-1610AF)
| FOB Price: | 6,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Year |
| Shipping: | Within 10 Days After Payment |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Plywood Case |
Specifications
Auto Feeding Laser Cutting Machine-Laser Engraver
Feathures of Laser Engraving Cutting Machine / Laser Engraver: Model UT-1612AF
With Two Pcs of High Precision Laser Head, Double Laser tube & Power Supply

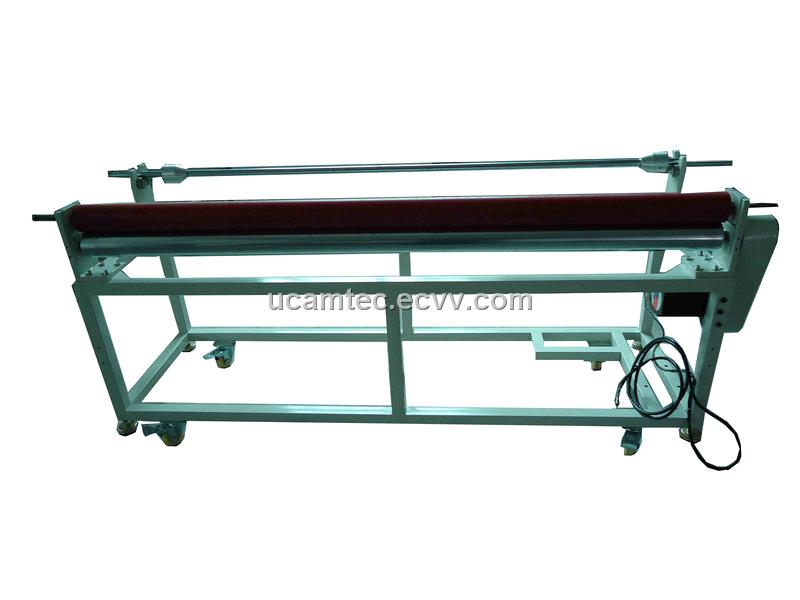

With Automatic Material Feeding System
With High Precision Slider Rail System
With Lid Open Laser Stop Switch
With Red Light Laser Pointer , Easy to Adjust Focus
Amber Glass standard
Coreldraw & AutoCAD Output Directly
Work by U -Flash Disk Directly, Offline Working Without Computer
Colored Display DSP Control With Auto & Manual Laser Power Adjusting
Air Compressor Assistance/ Air Blower
Water Protection, Laser come out only when Water Circulation normal for Cooling
Smoke Exhaust System
Water Chiller/ Industrial Chiller
Machine Structure and Color Optional
UCAMTEC Super Long Time Warranty of 2 years With Professional Aftersales Services:
Two Years Warranty Except Consumables , Make Your Purchase More Secured
With Automatic Material Feeding System
With High Precision Slider Rail System
With Lid Open Laser Stop Switch
With Red Light Laser Pointer , Easy to Adjust Focus
Amber Glass standard
Coreldraw & AutoCAD Output Directly
Work by U -Flash Disk Directly, Offline Working Without Computer
Colored Display DSP Control With Auto & Manual Laser Power Adjusting
Air Compressor Assistance/ Air Blower
Water Protection, Laser come out only when Water Circulation normal for Cooling
Smoke Exhaust System
Water Chiller/ Industrial Chiller
Machine Structure and Color Optional
UCAMTEC Super Long Time Warranty of 2 years With Professional Aftersales Services:
Two Years Warranty Except Consumables , Make Your Purchase More Secured
Technical Details of Auto feeding Laser Engraving & Cutting Machine Model UT-1612AF
Work Area: 1600x1200mm 64" X50"
Laser power: 80W x2 (60W , 100W & 120W Optional)
Laser Tube Type: CO2 Glass Tube
Location Precision: < 0.01mm
Resolution: User controlled from 100 to 1000DPI
Control System: 32 BIT DSP
Memory: 40M flash memory in the machine
Supported Image Formats: AI, DXF, BMP, GIF, JPG, PNG, MNG, TIF, TGA, PCX, JBG, JP2, JPC, PGX, RAS, PNM, SKA, RAW, PLT, DST, DSB
Machine Dimension: 2100x1700x1500 mm
Packing: Plywood Case
Net Weight: 380KGS
Gross Weight: 450KGS
Interface: USB2.0
Power Requirements: AC220V (or110V) ± 10% 50/60HZ
Laser power: 80W x2 (60W , 100W & 120W Optional)
Laser Tube Type: CO2 Glass Tube
Location Precision: < 0.01mm
Resolution: User controlled from 100 to 1000DPI
Control System: 32 BIT DSP
Memory: 40M flash memory in the machine
Supported Image Formats: AI, DXF, BMP, GIF, JPG, PNG, MNG, TIF, TGA, PCX, JBG, JP2, JPC, PGX, RAS, PNM, SKA, RAW, PLT, DST, DSB
Machine Dimension: 2100x1700x1500 mm
Packing: Plywood Case
Net Weight: 380KGS
Gross Weight: 450KGS
Interface: USB2.0
Power Requirements: AC220V (or110V) ± 10% 50/60HZ
| Laserable Materials | ||
| Engrave | Cut | |
| Laserply (Dual Color Laminate) | Yes | Yes |
| Wood | Yes | Yes |
| Acrylic | Yes | Yes |
| Glass | Yes | |
| Coated Metals | Yes | |
| Ceramic | Yes | |
| Delrin | Yes | Yes |
| Cloth | Yes | Yes |
| Leather | Yes | Yes |
| Marble | Yes | |
| Matte Board | Yes | Yes |
| Melamine | Yes | Yes |
| Paper | Yes | Yes |
| Mylar | Yes | Yes |
| Pressboard | Yes | Yes |
| Rubber | Yes | Yes |
| Wood Veneer | Yes | Yes |
| Fiberglass | Yes | Yes |
| Painted Metals | Yes | |
| Tile | Yes | |
| Plastic | Yes | Yes |
| Cork | Yes | Yes |
| Corian | Yes | Yes |
| Anodized Aluminum | Yes | |
| Ceramics | Yes | |
| Stainless Steel | * | |
| Brass | * | |
| " *" means you have to use a spray called " thermark" to spray the surface of the material and then you can mark on it. | ||
