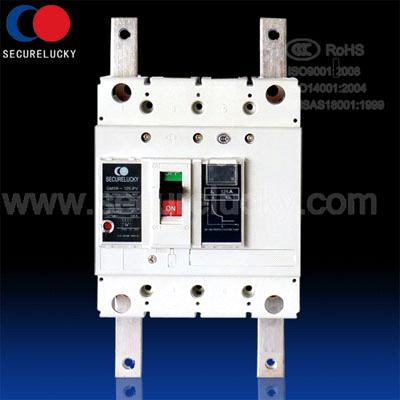

GM5-630P DC750V Y1D Connection Moulded Case Circuit Breaker
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Beijing in China |
|---|
Specifications
Over-entering and down-out GM5-630 P DC750/1000V/1250MCCB moulded case circuit breaker
Application conditions:
1. Altitude : less than 2000m ( please specify when it's higher than 2000m),
2. Ambient temperature : -45~+70 °c
3. moisture-resistant (TH MODEL)
4. Resistance to salt spray and oil (TH MODEL)
5. Resistance to mould (TH MODEL)
Specifications
|
Frame size
|
630
|
|
|
Pole
|
4P
|
|
|
Rated current:
|
250,315,350,400A
|
|
|
Rated Operation Voltage:
|
DC750,1000,1250V
|
|
|
Rated Impulse withstand voltage(Uimp):
|
8kV
|
|
|
Rated insulation voltage Ui:
|
1000V
|
|
|
Breaking Capacity Icu:
|
750V
|
20kA
|
|
1000V
|
20kA
|
|
|
1250V
|
20kA
|
|
|
|
|
|
|
Mechanical lifespan
|
4000times
|
|
|
Electrical lifespan
|
1000times
|
|
|
Mounting position
|
Any
|
|
|
Disconnector properties
|
Yes
|
|
|
Permissible operating ambient temperature
|
-45°C~+70°C
|
|
|
Rated ambient temperature
|
40°C in accordance with IEC60947-2 , 50°C in accordance with UL489B
|
|
|
Protection degree
|
IP20
|
|
|
Available accessories
|
Auxiliary switch, Alarm switch, Shunt release, Handle mechanism, Motor-driven, Mechnical interlocking
|
|
|
Short-circuit instantaneous acting current
|
10In
|
|
|
Mounting type:
|
Fixed, Plug-in,draw-out
|
|
|
Dimension:
|
257*184*103mm
|
|
|
Standard:
|
IEC60947-2 or UL489B
|
|
