Beijing Jinfei Tianhong Construction Machinery Co., Ltd.
China Manufacturer with main products: Suspended Platfom, Gondola, Construction Elevator, Construction Hoist, SC construction elevator, window cleaning equipment, hoist, building... |
SMZ150 Model Construction Lifter (Manufacturer)
| Supply Ability: | 1,000 Set/Sets per Year |
|---|---|
| Shipping: | Tianjin Port, China |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Steel shelf |
Specifications
| Place of Origin | Beijing, China (Mainland) |
| Brand Name | FTH |
| Model Number | SMZ150 |
| Rated Loading Capacity(kg) | 1.2 or 1.5 t |
| Hoisting Speed | 22m/min |
| Max Lifting Height | 78m |
| Max. Lifting Capacity | 1.2t or 1.5t |
| Working Temperation | -20 to 40 centigrade |
| Winch/Hoist Model | JK1.5 JK2 |
| Bottom Dimension of Cage | 3.5 x 1.7(m) |

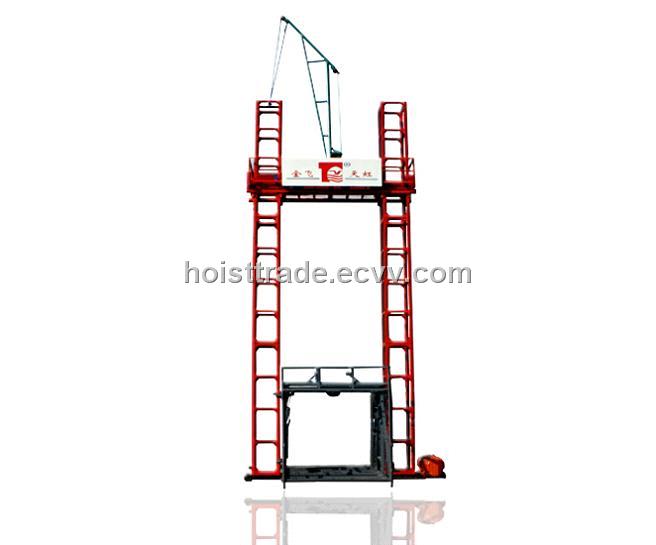

SMZ150 Construction Lifter
1. Safety devices
2. International approvals.
3. Competitive price
4. Manufacturer
SSZ150 Construction Lifter
A. Introduction of SMZ150 Construction Lifter
SMZ 150 Self-propelled Jack Gantry Lift is a new type of vertical transportation machinery widely applied in construction lifter, overall decoration and housing maintenance, etc. It improveds the tradditional security system of lift, effectively preventing recoil and overload, which would lead to material fall-off during the travel of basket. Our product is conforming to the requirements of Security Inspection Authorities. The common height of this machine is 24m, which can also be changed according to customer's needs.
B. Features of SMZ150 Construction Lifter
1. Equipped with self-lifting system; Self-erection and removal; Height can adjust with the building; Labor-saving and economic.
2. Adopting the attached rod instead of wind rope; improved construction conditions.
3. Two vertical posts unite whenever mounting or dismounting; safe and reliable.
4. Labor saving with manual winch for lifting stage and derrick for mounting standard sections.
5. Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from crash once the rope breaks.
6. Stop device is available on request for floor parking.
7. Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service time.
8. Adopting Overload Limiter to avoid overload accidents.
9. Equipped with a bi-way travel limiter supporting the use of winch, which can efficiently prevent punch and crash accidents.
10. The hanging basket is completely closed with protection screen and floor to prevent material slide and guarantees the personnel.
C Characteristics of "---" type winch of SMZ150:
1. Adopt VEZ taper motor, starting torque is big;
2. It’s easy to use, and the braking torque is 1.5-2 times the power of the common closed type winch, having instant braking effect.
3. Adopts two stage boxes; gear ratio is big, running smooth and steady, low noise.
4. The frame structure is ingenious; it’s easy to install, maintain and move.
D. Technical parameters of SMZ150 Construction Lifter
| Designed Items | SMZ150 | ||||||
| Installation Height(m) | 81 | 63 | 54 | 45 | 36 | 27 | 24 |
| Lifting Height(m) | 78 | 60 | 51 | 42 | 33 | 24 | 21 |
| Max. Lifting Capacity (t) | 1.2 | 1.5 | |||||
| Bottom Dimension of Cage(m) | 3.5*1.7 | ||||||
| Winch/Hoist Model | JK 1.5 JK 2 | ||||||
| Lifting Speed (m/min) | ≈22 | ||||||
| Working temperature | -20 to 40 °C | ||||||
