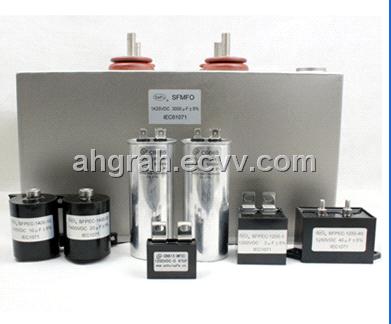

power electronic capacitors

AC/DC motor capacitor
1.Capacitance: 1uF~20000uF.
2.Rated voltage: 135~6000VAC
3.frequency:50/60Hz
4.high quality,UL/CQC
DC capacitor
·capacitance range: C = 100 u F - 20,000μF may be higher on request;
·capacitance tolerance: normal ±5%, can be smaller on request;
·rated voltage: Un = 600-6000V, other value on request. The operation voltage is
sum of DC voltage and the peak value of ripple voltage. Un = Undc + Un ripple;
·rated current: allow RMS current see parameter table;
·tanδ≤0.002 (20 °C,100 Hz);
·Self-inductance: typically value 30nH - 60nH ,may be less than 30n H on
request;
·lifetime expectancy: 100000 hours, other values on request;
·surge voltage: the expected life of capacitor has no significant influence in
the following list of surge and voltage;
·environment temperature: operating range -55 C~ +85; storage: -55 °C ~+90 °C;
·maximum permissible altitude:1000m;
·installation: in any position;
·standard applicable: IEC61881, IEC1071.
AC motor capacitor
 Features:
1) Small size, small loss and excellent self-healing property
2) Very small dissipation factor, small inherent temperature rise
3) High insulation resistance
Features:1) Capacitance: 1 - 120uF 2) Capacitance tolerance: ±5%, ±10% 3) Working voltage: 135 - 660V AC 4) Temperature range: -40 - +70°C5) It is applied for refrigerators, fans, electric pumps, washing machines, air exhausters, and air-conditionersMotor Starting Capacitor
1,CE,CQC & ROHS proved
2.good capacitance stability
3.reasonable price
4.delivery on time
With reliable explosion-proof equipment ,it is of highly safe, good self-healing
characteristic and long life-span.
1. Capacitance: 1uF --120uF.
2. Rated voltage: 220VAC/240VAC/250VAC / 370VAC / 440VAC / 450VAC /
500VAC/650VAC/660VAC
3. Operating temperature: -40 oC to +85 oC
4. Operating frequency: 50/60Hz
5. Endurable voltage (T-T): 1.75Un/2.0Un
6. Tangent of loss angle: ≤0.0040(1KHZ)
7. Capacitance deviation: ±5%
8. Out leads: wire or tabs
9. Specifications can be supplied according to the customers' special need.
10. reasonable price and stable quality.
11.others :capacitor,film capacitor,AC capacitor,motor run/start
capacitor,metallized film capacitor,plastic capacitor,fan capacitor,washer
capacitor,air-conditioning capacitor,Refrigerator capacitor,CBB60/61/65
capacitor  ,Lamps and lanterns capacitors,Explosion-proof capacitor,self-healing
capacitors,single phase shaded pole motor,single capacitors,double capacitors
,dual capacitors and so on.
