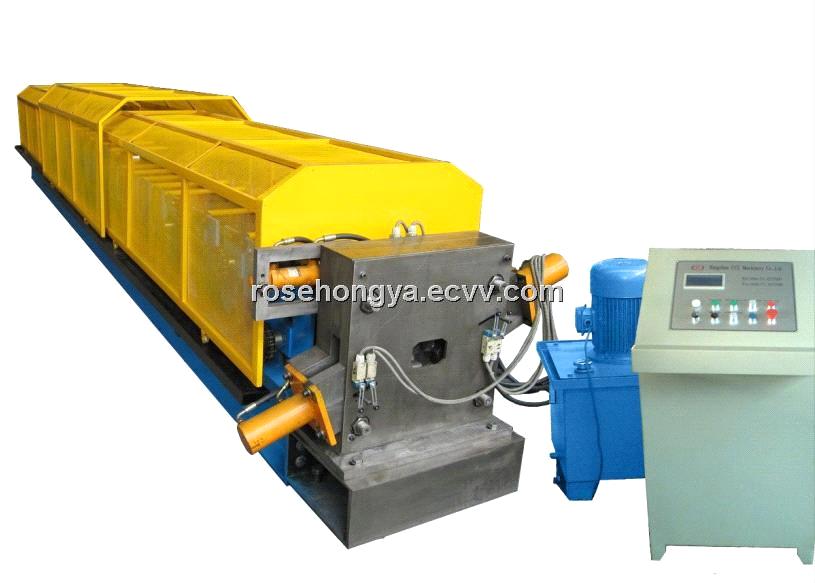

Downpipe Roll Forming Machine

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Downpipe forming machine , steel tube forming machine

It can produce the sealed color water pipes through forming the colored steel sheet and whipstitch it. It adopts PLC control system, AC frequency conversion speed-adjust technology, therefore, it can automatically cut to length. This is the original color steel down pipe forming machine in China with various freedom intellectual property and national patent.

Curving pipe forming machine is the complementary equipment which can be used to curve and neck down the pipe. The whole machine adopts can control to automatic produce, the angle can be adjusted manually.

We can design and manufacture machines for forming different profiles according to customers' requirement.

Model	downpipe forming machine
Material	color steel plate
thickness	0.45-0.55mm
Strength	230-300mpa
speed:	10-12m/min
roll material	45 # chrome
control modes	PLC
roll drive mode	chain drive
hydraulic station power	5.5kw
hydraulic system pressure	12mpa
main motor power:	4kw
forming shear	automatic length
