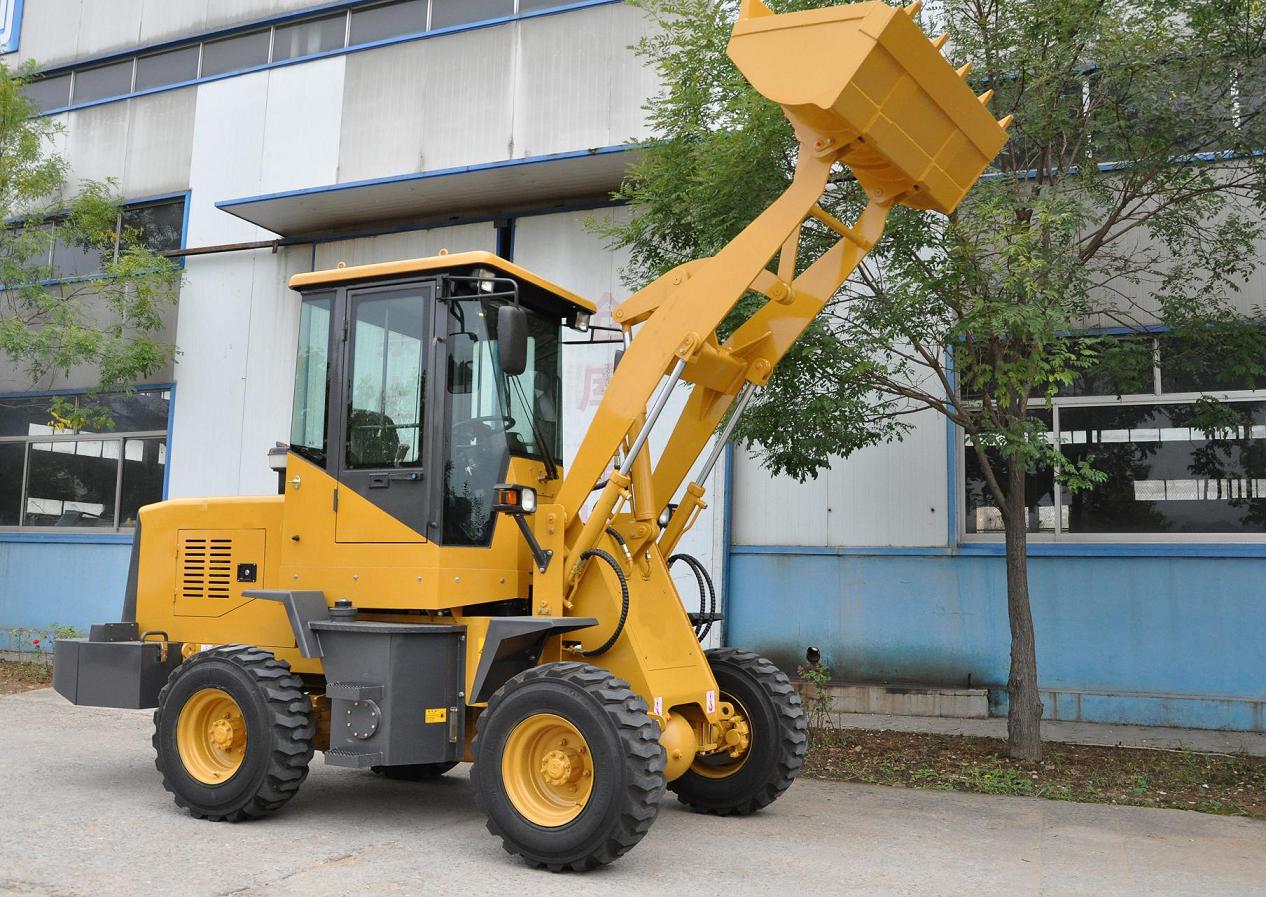

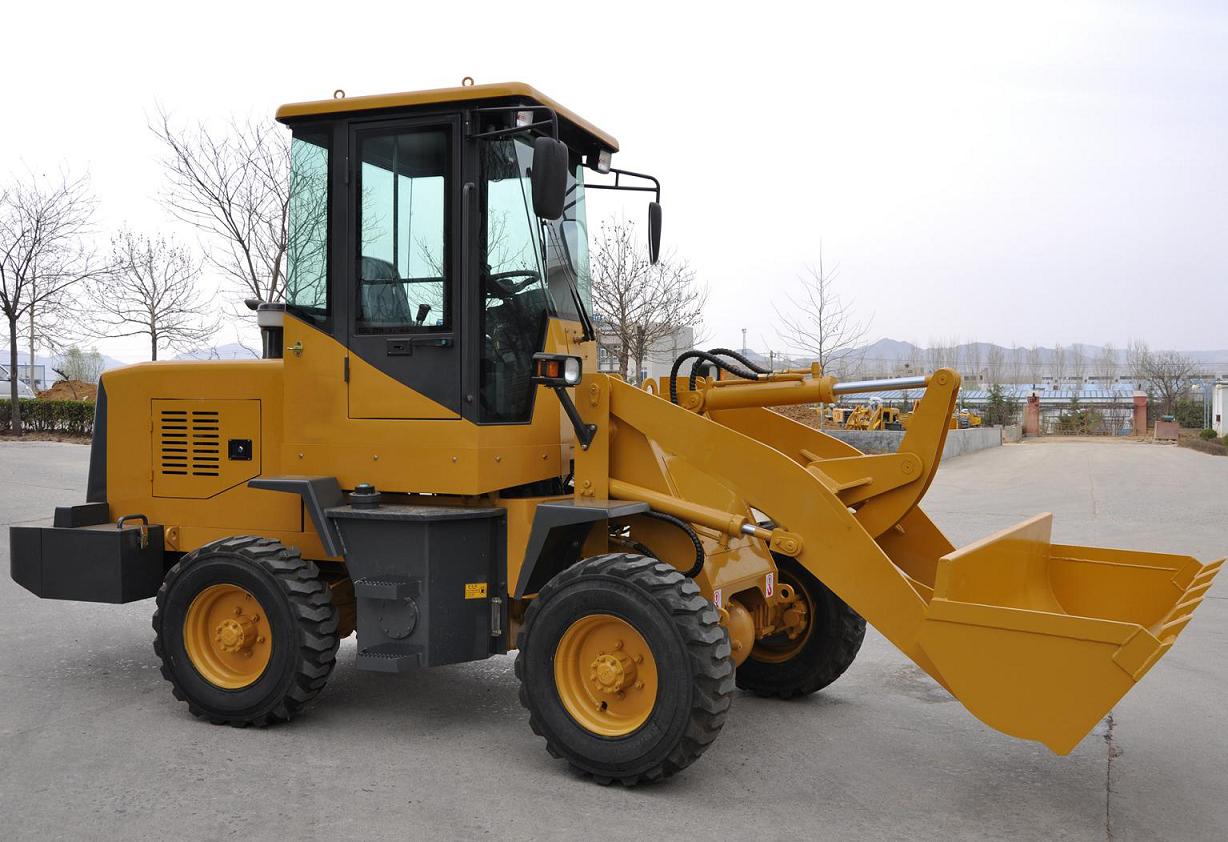

ZL16F Mini Wheel Loader
| FOB Price: | 7,800.00 - 18,500.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | Qingdao port |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: one year
- Certification: CE,ISO
- Rated Load: 1600KG
- Dimension(Long * Breadth * High): 5182x1910x2712mm
- Moving Type: Wheel Loader
- Type: Front Loader
- Model Number: ZL16F
- Brand Name: SATEN
- Condition: New
Specifications
Mini Wheel Loader:
|
Technical Parameter of ZL16F mini loader:
|
|||
|
Rated Bucket Capacity
|
0.9m3
|
Transmission Type
|
Counter Shaft Power-shift
|
|
Rated Load Capacity
|
1600KG
|
Gear Number
|
Two Advance Gears,
Two Reverse Gears |
|
Overall Weight
|
4870KG
|
Max. Speed
|
24km/h
|
|
Auto Flatting Function of Bucket
|
Have
|
Front and Rear Drive Axles
|
|
|
Static Tipping Load
|
3735kgf
|
Main Drive Type
|
Spiral Bevel Gear One-stage Reduction Type
|
|
Max. Breakout Force
|
51KN
|
Hub Reduction Type
|
Single Row of Planetary Gears
|
|
Max. Traction Force
|
3450kgf
|
Tyre
|
|
|
Max. Gradeability
|
30 degree
|
Specification
|
16/70-20
|
|
Lifting Time of Bucket
|
4.8s (Full Load)
|
Air Pressure of Front Tyre
|
220kpa
|
|
Fall Time of Bucket
|
3.3s (Full Load)
|
Air Pressure of Rear Tyre
|
180kpa
|
|
Dumping Time of Bucket
|
1.1s
|
Steering System
|
|
|
Overall Dimensions
|
|
Type
|
Load Sensing Steering Gear
|
|
L*W*H (mm)
|
5182x1910x2712
|
Turn Angle
|
35degree +/-1
right and left
|
|
Engine
|
Weichai Diesel Engine Plant
|
Min. Turning Radius
|
4367mm
|
|
Model
|
ZH4100K14-3
|
Hydraulic System
|
|
|
Type
|
Straight Air-cooling Four-stroke Direct-injection
|
Distribution Valve
|
ZL20E-04T.QW
|
|
Cylinder Number-Inner Diameter*Stroke
|
4-100x125
|
Working Pump
|
CBG2063
|
|
Max. Torque
|
270Nm
|
Brake System
|
|
|
Rated Power
|
45KW
|
Service Brake
|
Hydraulic Four-wheel Caliper Disc Type
|
|
Min. Fuel Consumption
|
about 243g/.kw
|
Parking Brake
|
Flexible Shaft Control External Drum Type
|
|
Rated Rotational Speed
|
2400r/min
|
Emergency Brake
|
Hydraulic Four-wheel Caliper Disc Type
|
|
Drive System
|
|
Fuel Capacity
|
80L
|
|
Torque Converter Model
|
YJ1-26501
|
Pressure of Hydraulic System
|
160Mpa
|
|
Type
|
Singlestage Single-phase Three-element
|
Dumping Height
|
2330
|
