Jiaozuo FangHua Cermamics Co., Ltd.
China Manufacturer with main products: Ceramic Proppant, Oil Fracturing Proppant, Ceramic Sand, Petroleum Proppant, Ceramic Proppant Sand, Frac Ceramic Sand, Alumina Sintered... |
Home
>Products Catalog > Oil fracturing proppant > used in the oil and shale gas oil fracturing proppant ball
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | 1) the products are packed in bags,eaching containing 1500kg. 2) waterproof and moistureproof. 3) ea |
Specifications
1) 20/40,30/50,40/70 ceramic proppant
2) 7500psi and10,000psi are available
3) lightweight, intermediate products
4) stim-lab
Application Situation of Ceramic Proppant in the Oil and Gas Wells
Oil fracturing proppant is a vital material used in the fracturing operations of oil and gas low permeable wells. In the
fracturing operations of deep wells, ceramic proppants are filled in the rock cracks of low permeable mineral deposits
under the circumstance of high pressure to have a high closed fracturing process and then spill apart the oil and gas
terrane. The non closed function of supporting fracturing cracks not only increases oil production and also extends the
service life of oil and gas wells.
Therefore, fracturing technology plays a significant role in global oil exploitation. However, the usage of oil fracturing
proppants directly affects successful operation of fracturing technology because high quality proppant is crucial in the
oil exploitation.
Performance Index
20/40 mesh lightweight ceramic proppant
Bulk Density (g/cm3) 1.58-1.62
Specific Gravity (g/cm3) ≤2.80
Turbidity ≤70
Roundness >0.9
Sphericity >0.9
Acid Solubility (%) ≤7.0
Crush Resistance (%)
52MPa(7500 psi)
69MPa(10,000 psi)
86MPa(12,500 psi)
52MPa≤6.0
69MPa≤10.0

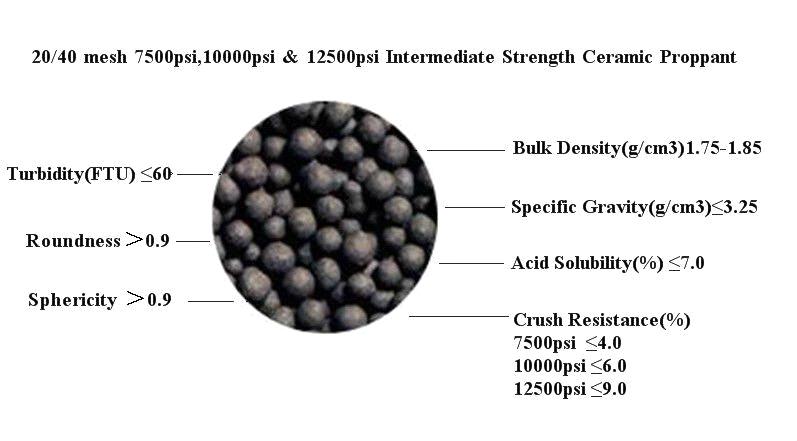

20/40 mesh intermediate ceramic proppant
Bulk Density (g/cm3) 1.75-1.85
Specific Gravity (g/cm3) ≤3.25
Turbidity ≤60
Roundness >0.9
Sphericity >0.9
Acid Solubility (%) ≤6.0
Crush Resistance (%)
52MPa(7500 psi)
69MPa(10,000 psi)
86MPa(12,500 psi)
52MPa≤4.0
69MPa≤6.0
86MPa≤9.0
30/50 lightweight bauxite proppant
Bulk Density (g/cm3) 1.58-1.62
Specific Gravity (g/cm3) ≤2.80
Turbidity ≤70
Roundness >0.9
Sphericity >0.9
Acid Solubility (%) ≤7.0
Crush Resistance (%)
52MPa(7500 psi)
69MPa(10,000 psi)
86MPa(12,500 psi)
52MPa≤5.0
69MPa≤8.0
30/50 intermediate bauxite proppant
Bulk Density (g/cm3) 1.75-1.85
Specific Gravity (g/cm3) ≤3.25
Turbidity ≤60
Roundness >0.9
Sphericity >0.9
Acid Solubility (%) ≤6.0
Crush Resistance (%)
52MPa(7500 psi)
69MPa(10,000 psi)
86MPa(12,500 psi)
69MPa≤4.0
86MPa≤8.0
40/70 lightweight bauxite proppant
Bulk Density (g/cm3) ≤1.50
Specific Gravity (g/cm3) ≤2.80
Turbidity ≤70
Roundness >0.9
Sphericity >0.9
Acid Solubility (%) ≤8.0
Crush Resistance (%) 86MPa≤10.0 86MPa≤5.0
40/70 intermediate bauxite proppant
Bulk Density (g/cm3) ≤1.75
Specific Gravity (g/cm3) ≤3.25
Turbidity ≤60
Roundness >0.9
Sphericity >0.9
Acid Solubility (%) ≤7.0
Crush Resistance (%) 86MPa≤5.0
