Home  >Products Catalog > Aerial Work / Boom Lift Platform > Telescopic Boom Lift Platform /Aerial Work Lift Truck

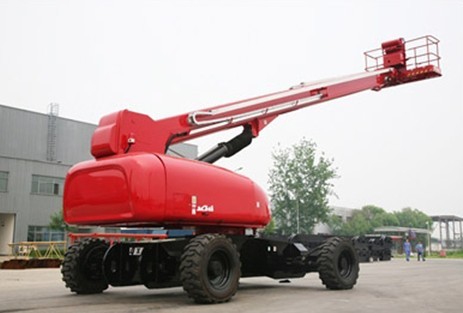

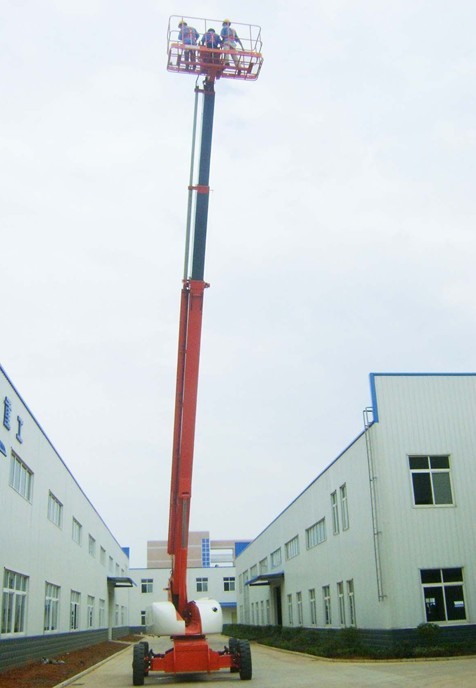

Telescopic Boom Lift Platform /Aerial Work Lift Truck SafeBuy Supplier Member

FOB Price: 46,000.00 - 352,600.00 USD/Set
Supply Ability: 10 Set/Sets per Quarter
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hunan in China

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: CE,ISO
  • Lift Drive / Actuation: Hydraulic
  • Lift Mechanism: Telescoping Lift
  • Brand Name: Sinoboom

Specifications

Telescopic boom lift platform:

Models & Specifications:
Model
GTBZ22
GTBZ24
GTBZ26
GTBZ28
GTBZ30
GTBZ32
GTBZ36
GTBZ38
Max. working height (m)
24
25.5
28.3
29.8
32.3
33.2
38.5
40
Max. platform height (m)
22
23.5
26.5
28
30.5
31.4
36.7
38.2
Horizontal reach (m)
19.2
20.7
23.5
25
22.5
24
22.8
24.3
Lifting capacity (kg)
270
230
270
230
340
230
340
230
(L*W*H)Platform dimension (mm)
1800*760*1355
1800*760*1355
1800*760*1355
1800*760*1355
2400*1340*1355
1800*760*1355
2400*1340*1355
1800*760*1355
Drive speed- stowed (km/h)
6.4
6.4
6.4
6.4
4.8
4.8
4.8
4.8
Drive speed- extended (km/h)
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.1
Gradeability(%)
30 (2WD)
40 (4WD)
30 (2WD)
40 (4WD)
40
40
40
40
40
40
Turning radius -inside (m)
3.3
3.3
5.25
5.25
3.31
3.31
3.31
3.31
Turning radius -outside (m)
6.2
6.2
8.45
8.45
6.02
6.02
6.02
6.02
Turntable tailswing-wheelretracted (mm)
1300
1300
1300
1300
1550
1550
1300
1300
Turntable tailswing wheelextended (mm)
---
---
875
875
1050
1050
875
875
Machine weight (kg)
15000
15500
16900
17400
19900
20400
21300
21800
Total size (L*W*H)(m)
10*2*2.65
10*2*2.65
11.4*2.5*2.8
11.4*2.5*2.8
12.2*2.5*3.1
12.2*2.5*3.1
12.6*2.55*3.1
12.6*2.55*3.1
Turntable rotation(degree)
360continuous
360continuous
360continuous
360continuous
360continuous
360continuous
360continuous
360continuous
Platform rotation(degree)
160
160
160
160
160
160
160
160
Engine
Perkins
Perkins
Perkins
Perkins
Cummins
Cummins
Cummins/Perkins
Cummins/Perkins
Voltage (V)
12
12
12
12
12
12
12
12
Tires size
385/65-22.5
385/65-22.5
385/65-22.5
385/65-22.5
385/65-22.5
385/65-22.5
445/65-22.5
445/65-22.5
Tires (Diameter/sectionwidth)(mm)
1020/398
1020/398
1105/379
1105/379
1105/379
1105/379
1175/435
1175/435
Controls<, /SPAN>, ;&, , lt;, SPAN style="Times New Roman'; COLOR: rgb(0,0,0); FONT-SIZE: 9pt">
DC
proportional
DC
proportional
DC
proportional
DC
proportional
DC
proportional
DC
proportional
DC
proportional
DC
proportional
Telescopic method
Synchronous
Synchronous
Synchronous
Synchronous
Synchronous
Synchronous
Synchronous
Synchronous
Wheelbase ?C retracted (mm)
2000
2000
2500
2500
2550
2550
2550
2550
Wheelbase ?C extended (mm)
---
---
3400
3400
3550
3550
3550
3550
Axle base(mm)
3000
3000
3200
3200
3800
3800
3800
3800
Hydraulic tank capacity (L)
200
200
280
280
224
224
280
280
Fuel tank capacity (L)
120
120
126
126
175
175
150
150
Ground clearance-center(mm):               260
