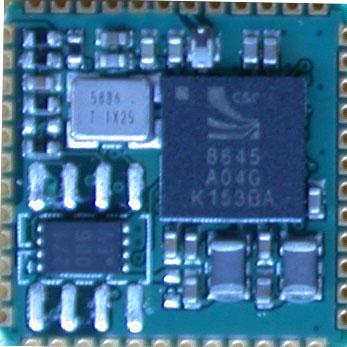

Bluetooth Bc08 Class2 Stereo Rom Module BTM-640/BTM645

FOB Price:	6.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Specifications

* The Module Is A Max.4Dbm( Class2 ) Module.
* Fully Qualified Bluetooth V3.0.
* Integrated Switched-Mode Regulator.
* Integrated Battery Charger.
* Embedded Kalimba Dsp Co-Processor.
* Integrated 16-Bit Stereo Audio Codec
* 93Db Snr For Dac.
* CsrâS Latest Cvc Technology For Narrowband
* And Wideband Voice Connections Including Wind
* Noise Reduction.
* Wideband Speech Supported By Hfp V1.6
* Profile And Msbc Codec.
* Multipoint Hfp Connection To 2 Phones For Voice.
* Multipoint A2Dp Connection Enables A
* Headset(A2Dp) Connection To 2 A2Dp Source
* Device For Music Playback.
* Support Digital Audio Bus : Pcm And I2S.
* Support Host Interface: Usb2.0 Or Uart.
* Sbc, Mp3, Aac, Faststream(Btm640),
* Aptx(Btm645) Decoder Support.
* Hsp V1.2/ Hfp V1.6/ A2Dp V1.2/ Avrcp V1.4
* Voice Prompts (Spi Flash)
* Rohs Compliant.
* Small Outline. 13.4 X13.4 X2.7Mm(8M Spi Flash)
* 13.4 X13.4 X1.9Mm(64K Eeprom)

Applications:-
* Stereo Wireless Headsets.
* Wired Stereo Headsets And Headphones.
* Portable Stereo Speakers.
