Led Panel Light 200*200mm 12W

Supply Ability:	10,000 Piece/Pieces per Month
Shipping:	3-7days
Payment Terms:	T/T, Paypal, Western Union

Inquiry Now Start Order

Related products from verified members

LED RGB Panel Light LW-PLS612

Price:

Min. Order:
LED Panel Light

Price:

Min. Order:
LED Panel Lighting UP3060

Price:

Min. Order:
Dimmable LED Panel Light

Price:10.00-30.00 USD/Piece

Min. Order:
LED Panel Light

Price:

Min. Order:
16*160 Pixel LED Panel

Price:

Min. Order:100 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	box

Specifications

1. panel led light,led panel,light panels

2. Power:12W

3. Imported guide plate from Japan Mitsubishi

Model No.:	HM-PL12W-2020
Power:	12W
LED Quantity:	100 PCS
LED Source:	SMD LED 3014
Material:	Aluminum Alloy + PMMA
Input Voltage :	AC85-265V, 50/60Hz
Output Voltage:	DC30-40
Color Temp:	2700-3500K / 6000-6500K
Luminous flux :	650-800 LM
CRI :	70-78 Ra
Size:	20020012.5mm
P.F:	>0.93
Work Temp:	-30~80°C
Life span:	>50,000hours
Certification:	CE, RoHS
Warranty	3years

Products advantages:

1. Adopt imported high quality light source SMD3014, single lumen 11 lumen above. high brightness , excellent heat dissipation.

2. Imported guide plate from Japan Mitsubishi, the light guide light rate is 75% above. No dark, no bright side, lighting soft and uniformity.

3. High quality Isolation constant current driver, stable performance, input voltage:AC85-265V,output voltage is DC30-40V, low power consumption, high power efficiency.

4. High energy saving, high brightness, the best newest efficiency constant-current driver.

5. Environment-friendly, no UV or IR radiation, no heating effect and no poison.

6. Uniform lighting surface, wide lighting angle.

7. Ultra and gently, professional structure and feature design, more artistic.

8. Stable and durable: the lifetime is more than 50.000 hours , is more 50 times than incandescent light , is more 10 times than energy light , saving much maintain and replace charge .

9. LED panel light is a kind of high quality indoor lighting lamp, its external border formed by the aluminum anodizing, improved the corrosion resistance, the sheet hardness and good decorative feature of aluminum alloy.

10. LED panel light have the unique optical design, the light through the LGP, can production uniform surface lighting effect.

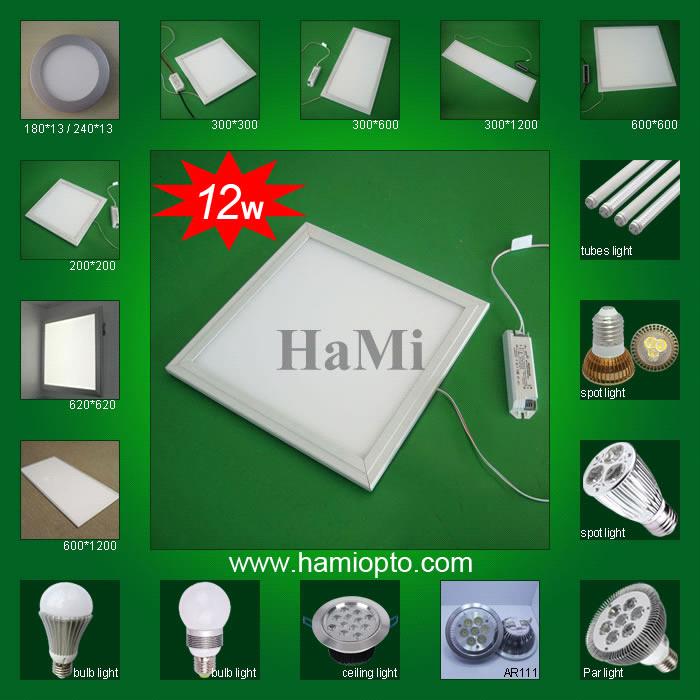

Product Series:

Model No.	Size (MM)	Power	LED (pcs)	Luminous flux	Color temp	Input Voltage	Output Voltage
HM-PL9W-180	Dia 180*13	9W	120	600-700 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL15W-240	Dia 240*13	15W	204	1000-1200 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL12W-2020	20020012.5	12W	100	650-800 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL12W-3030	30030012.5	12W	100	650-800 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL18W-3030	30030012.5	18W	160	1000-1100 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL18W-3060	30060012.5	18W	160	1000-1100 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL25W-3060		25W	220	1300-1400 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL30W-3060		30W	280	1800-2000 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL30W-6060	60060012.5	30W	280	1800-2000 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL36W-6060		36W	320	2000-2200 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL40W-6060		40W	360	2500-2800 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL48W-6060		48W	440	3000-3300 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL60W-6060		60W	560	3800-4200 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL48W-6262	62062012.5	48W	440	3000-3300 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL40W-30120	300120012.5	40W	340	2000-2300 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL48W-30120		48W	440	3000-3300 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL55W-30120		55W	500	3200-3400 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL65W-30120		65W	600	3900-4300 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL55W-60120	600120012.5	55W	500	3200-3400 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL70W-60120		70W	660	4000-4500 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V
HM-PL78W-60120		78W	720	4500-5000 LM	2700-3500K 6000-6500K	AC85-265V	DC30-40V

Application:

1. Conference/Meeting rooms, Classrooms
2. Offices, Hospitals, Factories
3. Hotels, Offices or other Commercial Complexes
4. Residential/Institution Buildings
5. Places where energy saving and high color rendering index are needed
