electric carriage

FOB Price:	500.00 - 10,000.00 USD/Set
Supply Ability:	10,000 Set/Sets per Year
Shipping:	within 30 working days after receiving deposit
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Bucket Elevator

Price:

Min. Order:
Speed, width, height adjustable belt conveyor w...

Price:200.00-300.00 USD/Set

Min. Order:1 Set
Belt Conveyor

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard

Specifications

Load Capacity: 3--200T

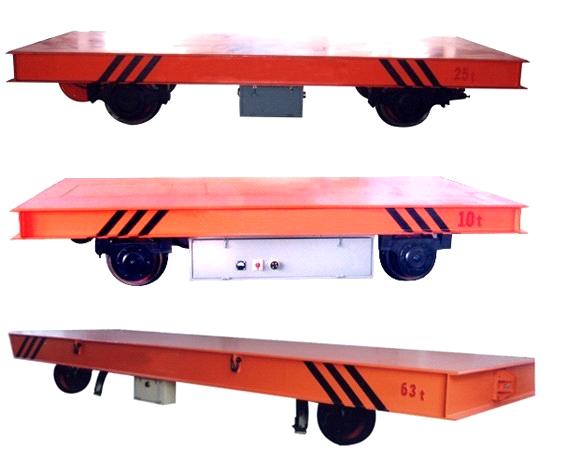

KPD electric flat carriage
1.Low voltage rail flat car
2.Used For heavy load good
3.Use for factory,coal,metallurgy

KPD electric flat car is a 36V power supply low voltage track electric flat car, its working

principle is based on supply rail trolley line. Step-down transformer control cabinet ground single-phase (three phase) AC 380V step-down to the individual (three phase) 36V safe voltage.The walking track (track trolley line feed)

fed to give flat car, and then by car for the single-phase step-up transformer step-up (three phase) AC 380V. A flat single-phase capacitor motor vehicle to provide power (when three-phase motor YZ lifting metallurgy).

Since it no use cable, so safe, not afraid of hot, not afraid to drop it, without prejudice to the

cross-transport, easy to implement remote control and automation, can be in the corners, even the fork i

n the roundabout long distance run, to plant rationalization of the transport arrangements to provide

favorable conditions. But the track in high demand must ensure rail insulation, more than a certain distance running track should be added copper wire compensation. Long distance running must also be increased number of step-down transformer.

Model	KPD-30-1	KPD-50-1	KPD-75-1	KPD-100-1	KPD-150-1
Carrying capacity(t)	30	50	75	100	150
Moving speed (m/min)	30	25	25	20	20
Truck distance(mm)	1435	1435	1435	1435	1435
Wheel distance(mm)	2500	2800	3200	3600	5500
Table size(mm)	4500*2200	5000*2500	5600*2500	6300*2800	8000*2800
Overall dismension(mm)	45002200650	50002500700	56002500750	63002800900	630028001100
Power supply	Three Phase Current 380V 50HZ
Motor type	JDYP-12-6	JDYP-21-6	JDYP-22-6
Brake model	YWZ4B-200/23		YWZ4B-500/50
Minimum turning radius	500	600	700	700	700
Wheel diameter(mm)	50	55	60	80	90
Recommend stail rail	P43 P50	P38 P43	P43 P50	P50 QU70	P50 QU100
Referred weight(kg)	4.177	5.122	8.718	11.539	29
