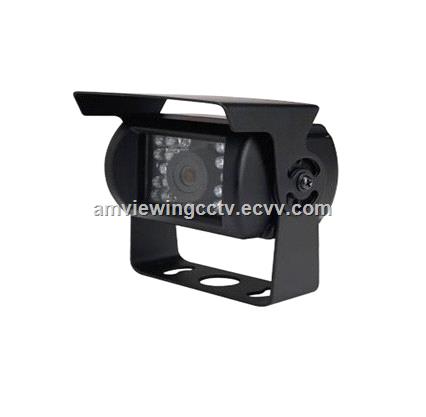

Home  >Products Catalog > Car Camera > Car Rearview Camera Waterproof,1/3'' Sony ccd Vehicle Backup Camera,Car Backup Camera

Car Rearview Camera Waterproof,1/3'' Sony ccd Vehicle Backup Camera,Car Backup Camera SafeBuy Supplier Member

Supply Ability: 20,000 Piece/Pieces per Month
Shipping: 2-5 working days for samples;7-20 working days for bulk order
Payment Terms: T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Color Box,Neutral Packing,Export Carton

Quick Details

  • Warranty: 12Months
  • Model Number: MYY-LCR170CW
  • Brand Name: MiyeaEYE
  • Car Make: commonly used
  • Lamp Type: LED
  • Voltage: 12V
  • Resolution: 420TVL
  • Image sensor: 1/3" Sony CCD
  • Lens: 3.6mm lens
  • Feature: Mirror image function

Specifications

Night Vision Car Backup Camera
CarRearviewCameraWaterproof13SonyccdVehicleBackupCameraCarBackupCamera
Reverse Backup Camera Details:
1/3" SONY CCD;
420TV Lines;
Mirror image function;

420TVL, 480TVL, 540TVL, 650TVL, 700TVL available.

Detailed Specifications Of The Parameters
Model
LCR170CW
Image Device
1/3" Sony CCD
Horizontal Resolution
420TVL
Minimum Illumination
18 IR Leds (? 8), 0 Lux(Led On)
Effective Pixels
PAL: 500(H)*582(V); NTSC: 510(H)*492(V)
Scanning System
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
S/N Ratio
More Than 48dB(AGC off)
Electronic Shutter
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
Gamma Characteristic
0.45
White Balance
Auto
Lens Option
3.6mm lens
BLC
Auto
AGC
Auto
Sync System
Internal Synchronization
Video output
1Vp-p 75 Oms , Negative
Power Consumption
12V± 10%DC, 50mA
Operation Temperature
-10℃ ~ + 50℃, RH 95% Max
Storage Temperature
-20℃ ~ + 60℃, RH 95% Max
Housing
black
Dimension
75x70x43mm
Shell Material
metal casing
Supplied Accessories
User manual, cable, bracket
