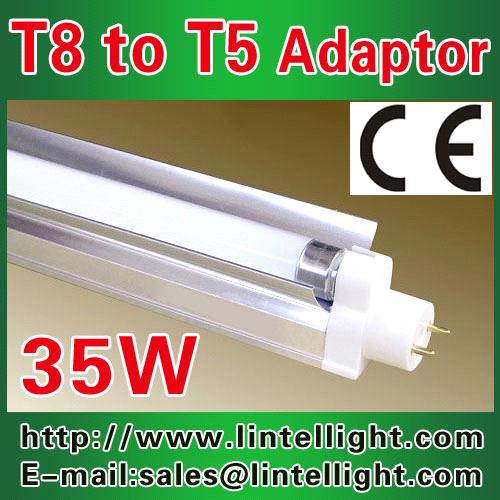

CE listed T8 to T5 adapter fixture with reflector
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|
Specifications
1.Direct replacement for Standard T8/T10/T12 fluorescent tubes with energy saving T5 tubes with adapter.
2.This device allows instant savings of energy & emissions and maintenance/service cost, simple Installation
3.Instant-on silent energy-efficient electronic ballasts generate non-flickering light , no starter needed
4.Triphosphor tubes give full-spectrum light output
5.Higher colour index gives better colour reproduction (CRI of 83)
6.High colour temperature (K) lends itself to better visual acuity
7.High Power Factor of 95 converts more energy to light
Many Uses: organizations may gain instant & substantial benefit: SCHOOLS, HOSPITALS, HOTELS, INDUSTRY, OFFICES, RAILWAYS, AIRPORTS, Etc.
Very Little Heat: gives off very little heat
Complete Unit: each T5 Retrofit Fluorescent light adapter is constructed with aluminum fixture and hi-temp plastic Bi-Pin head and comes with a T5 cool white fluorescent lamp.
LAMPS
Lamp Included: T5 (5/8in diameter) fluorescent lamp with a color temperature of 4100K (cool white) is included with each fixture (Option 2700K warm white, 6500K Daylight)
T5 fluorescents provide superior efficiencies:
1. Less power consumption.
2. Less Greenhouse gas emissions.
3. Less maintenance.
4. Improved illumination.
5. Less over-all cost.
6. Avoid increasing the electricity bill
7. Environment safe : T5 uses 3 mg mercury, T8 uses 9 - 12 mg mercury
Very Good Lamp Life: rated life is 12,000 hours on average (Lamp is easily replaced.)
Caution: always be certain that the lamp is seated properly in both of its sockets. Be sure that both pins of each end are inside their respective socket and that the lamp is rotated 90 degrees once the pins are in the sockets. Failure to make good electrical contact between the pins and its socket may result in arcing and excessive heating of the socket.
ELECTRICAL FEATURES
Quiet Electronic Ballast: built-in lightweight electronic ballast provides instant-on starting with no flickering and cool quiet operation
Energy Efficient: uses only 13, 19, 26 watts of power/fixture respectively.
INSTALLATION
Easy to Install
1. Switch Off power
2. Remove the old T8/T10/T12 tube & starter unit from the fixture
3. Twist in the T5 Retrofit Fluorescent light adapter securely.
4. Switch on power, takes all of 2 minutes and job done...!!
Caution: Always check local electrical codes and the National Electrical Code (NEC) before installing any lighting products. It is also wise to consult with a licensed electrician in your geographical area about any electrical details that you might have questions about and to make certain that you are satisfying all of the appropriate electrical codes.
ACCESSORIES
1) Optional reflector available
2) T5 Cool White Fluorescent Light Bulbs - Optional, additional spare lamps are recommended.
