Clean-Link Filtration Technology Co., Ltd.
China Manufacturer with main products: Ceiling Filter, Filbreglass Filter, Pre-Filter |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications

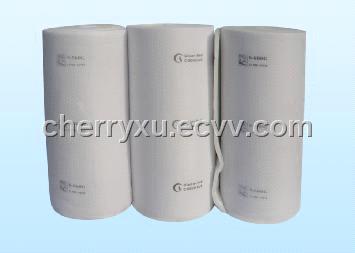

ceiling filter media
Apply to the air filtration for the painting factory, the spray workshop, stoving varnish room and so on.
Apply to automotive factory, the automobile repair shop, the motorcycle factory, the bicycle factory, the operating system of the household appliances painting
Remarkbased on customers requirements , the whole roll and all the size are supplied.
Speciality:
It is made from the anti-break organic synthesis fiber in high-powered high melt way; Gradual structure, Use the technology which encrypts gradually the multi-layered; The fiber density increases gradually toward pure air; high filter efficiency; May according to the dust size, prevent them in the different density level; it accommodates many dust more effectively.
Coherent processing, filtering material to pass through soaks the rubber fully, Fully imgrenated media with adhesive treatment makes dust particles unable to pass; uniform diffusion forms laminar flow to have perfect paint spray finish;
The wind surface of the mesh is specially compact, and also put a fishing net to strengthen it ; this structure make the filtering material keep the high filtering efficiency and large dust holding capacity; even more ,it can extend the working life; When uses C-600G and C-560G, besides can assure the good air quality, because of low resistance of the material, it also saves the systems operation cost.
It is at the customers choice that the material have the entire coherency, the surface viscosity, dry processin
Conform to European and American classfications for nonflammabilith.(e.g DIN53438-F1,UL900-class 2 with flameout)
|
type
|
C-600G
|
C-560G
|
C-350G
|
AF-600G
|
FS-600G
|
S-600G
|
|
Material
|
Polyester
|
Polyester
|
Polyester
|
Polyester
|
Polyester
|
Polyester
|
|
efficiency
|
38%
|
35%
|
35%
|
41%
|
38%
|
38%
|
|
Avg.arrestance
|
99%
|
98%
|
96%
|
98%
|
98%
|
97%
|
|
Air velocity
|
0.25m/S
|
0.25m/S
|
0.25m/S
|
0.25m/S
|
0.25m/S
|
0.25m/S
|
|
Rated air flow
|
900 m³/h
|
900 m³/h
|
900 m³/h
|
900 m³/h
|
900 m³/h
|
900 m³/h
|
|
Initial resistance
|
38Pa
|
35Pa
|
30Pa
|
45Pa
|
35Pa
|
35Pa
|
|
Final resistance
|
450Pa
|
430Pa
|
400Pa
|
430Pa
|
450Pa
|
450Pa
|
|
Dust holding at tested final
|
430 g/
|
400 g/
|
380 g/
|
400 g/
|
430 g/
|
450 g/
|
|
Filtration class
|
F5
|
F5
|
F5
|
F5
|
F5
|
F5
|
|
Resistance humidity
|
100%
|
100%
|
100%
|
100%
|
100%
|
100%
|
|
Temp.resistance
|
120
|
120
|
110
|
120
|
120
|
120
|
|
Temp. short peaks
|
140
|
140
|
120
|
140
|
140
|
140
|
|
Normal thickness
|
22mm
|
22mm
|
22mm
|
22mm
|
22mm
|
22mm
|
|
M
Roll sizes standard
|
1.6*21
2*21
1*21
|
1.6*21
2*21
1*21
|
1.6*21
2*21
1*21
|
1.6*21
2*21
1*21
|
1.6*21
2*21
1*21
|
1.6*21
2*21
1*21
|
