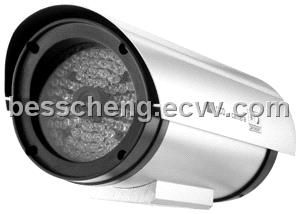

QF-718A CCD IR Infrared Waterproof Security CCTV Camera with AC Adapter
| FOB Price: | /Piece |
|---|---|
| Supply Ability: | 20,000 Piece/Pieces per Month |
| Shipping: | Sample delivery time 5-7 days,mass production 15-20 days |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard gift box package, 1pc/gift box |
Specifications
CCD IR Infrared Waterproof Security CCTV Camera with AC Adapter
1.420TVL/480TVL/600TVL/700TVL horizontal resolution optional with the Sony or Sharp image sensor
2.4/6/8/12/16mm Lens Optional
3.77PCS Ø5 led light and the IR distance up to 60-90m
4.The camera work voltage iw AC 100-240V
5.Lightning protection and anti-jamming to protect the camera and keep good picture.
6.Optional OSD menu and WDR for the higher resolution 480tvl/600tvl/700tvl.The OSD menu is control by the buttom on the cable ,easy to configure and operation settings.Camera with the WDR will be gotten good pictures at any place ,especially the place with brightness comprision.
7.With high density aluminum alloy shell with waterproof grade IP66, good waterproof and easy heah radiation
8.Warranty: 1 year
9.Certificate: CE,FCC,ROHs
Specification:
|
MODEL
|
|
QF-718
|
||||||
|
Image Sensor
|
|
1/3" Sony Color CCD
|
1/4" Sony Color CCD
|
1/3" Sharp Color CCD
|
1/4" Sharp Color CCD
|
1/3" Sony Color CCD
|
1/3” Sony Effio
|
|
|
Horizontal Resolution
|
|
420TVL
|
480TV L
|
600TVL
|
700TVL
|
|||
|
Signal System
|
|
PAL/NTSC
|
||||||
|
Picture Pixels
|
|
PAL: 500(H) X 582(V), NTSC: 510(H) X 492(V)
|
PAL: 752(H) X 582(V)
|
PAL: 960(H) X 582(V)
|
||||
|
NTSC: 768(H) X 494(V)
|
NTSC: 967(H) X 494(V)
|
|||||||
|
LED No.
|
|
77PCS Ø5
|
||||||
|
Ranging Distance
|
|
60-90m
|
||||||
|
Infrared Wavelength
|
|
850nm
|
||||||
|
Sync System
|
|
Internal Synchronization
|
||||||
|
S/N Ratio
|
|
>48dB
|
||||||
|
Lens
|
|
4/6/8/12/16mm
|
||||||
|
Electronic Shutter
|
|
PAL: 1/50 -1/100,000 Sec, NTSC: 1/60 -1/100,000 Sec
|
||||||
|
Gamma Collection
|
|
r=0.45
|
||||||
|
White Balance
|
|
AUTO
|
||||||
|
BLC
|
|
AUTO
|
||||||
|
AGC
|
|
AUTO
|
||||||
|
Minimum Illumination
|
|
0 Lux (IR ON)
|
||||||
|
Video Output
|
|
1.0Vp-p, 75Ω
|
||||||
|
Power Supply
|
|
DC12V +/- 20%
|
||||||
|
Operation Temperature
|
|
-10℃~+50℃
|
||||||
