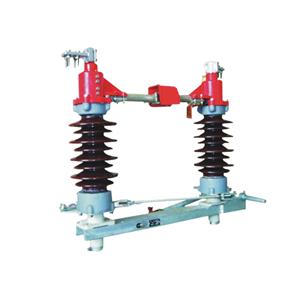

33kV Outdoor HV High voltage Isolator Disconnector (GW4-40.5)
| FOB Price: | 3,500.00 - 4,500.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | 20 DAYS FOB NINGBO/SHANGHAI |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | WOODEN CASE |
Quick Details
- Model Number: GW4-40.5
- Brand Name: Tianan Electric
- No. of poles: 3
- Grounding: with earthing blade
- Installation: on Steel structure
- Application: Outdoor, substation
- Standard: IEC, ANSI, GB, etc
- Certificate: KEMA, ISO, TUV
- Votlage rating: Medium voltage
- Breaking type: horizontal break
Specifications
General
GW4A-40.5 D(W)
isolating switches are kinds of outdoor HV electricity transmission equipments
at three phase AC frequency of 50Hz/60Hz. It is used for breaking or connecting
HV lines under no loads so that the power lines can be changed and connected and
the way the electricity runs is changed. In addition, it can be used to exerise
safe electrical insulation for such HV electric apparatuses as bus and
breaker.
This product has two insulators with horizontal center breaks. It is
openable in the middle and accessible to the grounding switch on one side or two
sides. The isolating switch adopts CS14G or CS11 manual operating mechanism ro
CJ2 motor based operating mechnism to realize the tri-pole linkage. The
grounding switch adopts CS14G manual operating mechanism to actualize tri-pole
linkage.
Technical Data
| S/N | Item | Unit | Parameter |
| 1 | Rated voltage | kV | 40.5 |
| 2 | Rated insulation level |
|
|
| 3 | Rated power frequency withstand voltage (1 min) |
|
|
| 4 | To earth | kV | 95 |
| 5 | Across open breaks | kV | 118 |
| 6 | Rated lightning impulse withstand voltage |
|
|
| 7 | To earth | kV | 185 |
| 8 | Across open breaks | kV | 215 |
| 9 | Rated frequency | Hz | 50/60 |
| 10 | Rated current | A |
1250 2000 25000 3150 4000 |
| 11 | Rated short-time withstand current | kA |
31.5 40 50 |
| 12 | Rated peak withstand current | kA |
80 100 125 |
| 13 |
Rated duration of short circuit Primary switch/ earthing switch |
s | 4/4 |
| 14 | Rated terminal mechanical load |
|
|
| 15 | Horizontal -logntitudinal | N | 750 |
| 16 | Horizontal- vertical | N | 500 |
| 17 | Vertical force | N | 750 |
| 18 | Creepage distance | mm |
1013 1256 |
| 19 | Mechnical endurance | times | 5000 |
| 20 | Motor operating mechanism |
|
|
| 21 | Model |
|
CJ2 |
| 22 | Motor voltage | V |
AC 380 DC220 DC110 |
| 23 | cControl circuit's voltage | V |
AC 380 AC 220 DC220 DC110 |
| 24 | Opening time and closing time | s | 7+/-1 |
| 25 | Manual operating mechanism |
|
|
| 26 | Model |
|
CS14G |
| 27 | Electromagnetic lock's voltage | V |
AC 380 DC220 DC110 |
