IP65 Anti-Vandal Stainless Steel Keyboard with Function Keys & Touchpad (x-Pp92b-S)
| Supply Ability: | 2,000 Set/Sets per Month |
|---|---|
| Shipping: | 1-2 weeks after payment is received. |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Bulk packing, each unit with label marked CE, FCC and RoHS to a box. |
Specifications

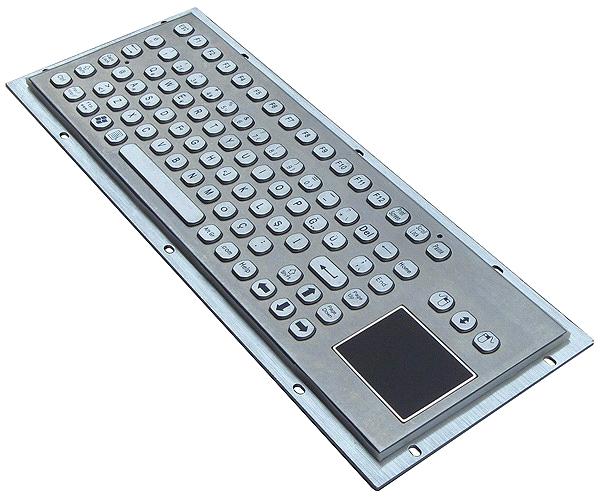

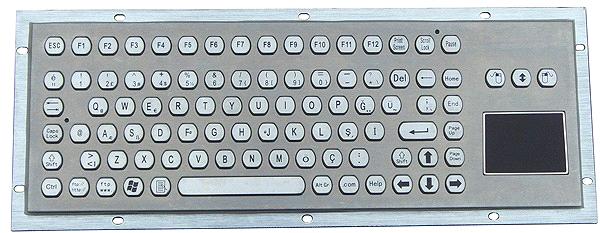

IP65 anti-vandal stainless steel keyboard with function keys & touchpad, industrial keyboard, Touchpad Keyboard
SERIES NO.: X-PP92B-S
DESCRIPTION: 92 keys vandal proof stainless steel keyboard with function keys, integrated touchpad, with carbon-on-gold key switch technology for fast and accurate data input, back panel mounting.
MODEL NO.: X-PP921B-S
DIMENSIONS: 392.0mm x 135.0mm (front panel)
MAIN FEATURE
1. Function keys (F1...F12) are on the top line of the Keyboard for easy operation.
2. Waterproof execution according to degree of protection IP65 (Static) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
3. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
4. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
5. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.
6. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
7. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
MECHANICAL DATA
1. Key: 92 keys, SUS304 stainless steel.
2. Key top style: Protuberant keys, with laser engraved and etched legends and raised braille on keys are available
3. Key travel: 2.0mm
4. Front Plate: Super quality brushed stainless steel.
5. G.W.: 2.5KGs (X-PP921B).
TOUCHPAD DATA
1. Touchpad cover: Composite
2. More than Lifetime 10 million strokes
3. Mutual Capacitance sensing
4. X/Y position sensing resolution: 40 counts/mm
5. X/Y position reporting: Relative
6. Output (self-detectable depending on cable): PS2 or USB
7. Tracking speed: Maximum 1,016 m/sec
8. Power supply voltage: 5 VDC 0.25V
9. Current rating (active mode): 17 mm
ELECTRICAL DATA
1. Supply Voltage: +5V DC +/-5%
2. Current Rating: appr. 20mA
3. Switch Contact Material: Carbon-on-Gold key switch technology
4. Interface: PS2, USB available.
5. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
1. Operating temperature:-20C to +60C.
2. Storage temperature: -30C to +70C.
3. Operating RH: 30-90%.
4. Atmospheric pressure: 60-106Kpa.
RELIABILITY
1. RoHS Compliant, CE and FCC
2. Protection Level: IP65(front panel static)
3. Vandal resistant IK09
4. MTBF >50000H.
5. MTTR <30min.
