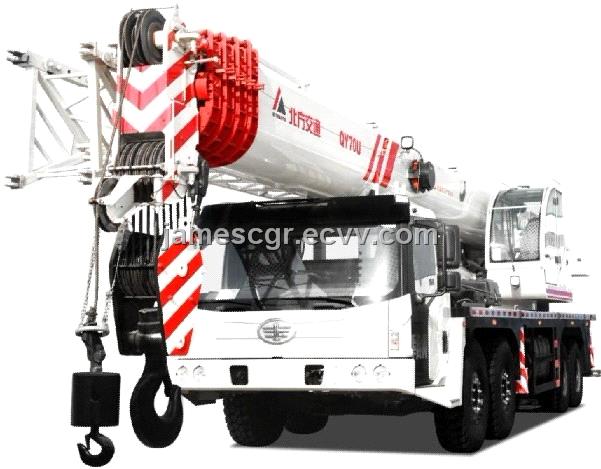

70T Mobile Hydraulic Truck Crane

FOB Price:	40,000.00 - 300,000.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	DALIAN, TIANJIN, SHANGHAI
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Truck Crane (QY25H431)

Price:

Min. Order:
recondition tadano 50ton truck crane

Price:300,000.00 USD/Piece

Min. Order:1 Piece
Used Crane Kobelco 25t

Price:

Min. Order:1 Set

Product Details

Export Markets:	South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin:	Liaoning in China
Packaging Details:	NAKED

Specifications

Working Condition

1,Altitude: 0-4500m

2,Temperature: -25°C--+45°C

3,Allowed working condition: solid, stable land, the vehicle should be horizontal

4,Wind force: ≤6 degree

Working Range

“KAI FAN” Brand KFM5485JQZ70U(QY70U)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 70t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

Main Parameters

Items		Unit	Value
Working Performance Parameters	Max. Rated lifting weight	kg	70000
	Max. Lifting force of the basic boom	kN.m	2400
	Max. Lifting force of the longest main boom	kN.m	1120
	Max. Lifting height of the basic boom	m	12.49
	Max. Lifting height of the main boom	m	44.60
	Max. Lifting height of the vice boom	m	61.2
Working Speed	Max. Speed of the single rope	m/min	120
	Extending time of the lifting boom	s	150
	Lifting time of the lifting boom	s	75
	Turning speed	r/min	0-2
Traveling Parameters	Max. Travelling speed	km/h	72
	Max. Grade ability	%	30
	Min. Turning radius	m	12
	Min. Ground clearance	m	0.230
	Approaching angle	°	18
	Departure angle	°	11
Weight Parameters	The whole weight	kg	47870
	Load of the front axle	kg	9935/9935
	Load of the rear axle (double axles)	kg	28000
Dimension Parameters	External dimension(lengthwidthheight)	mm	14350×2800×3750
	Vertical span of outrigger	m	5.95
	Horizontal span of outrigger	m	7.7
	Length of main boom	m	11.6~44
	Length of vice boom	m	9.6-16.1
	Elevation of main boom	°	-2~80
Chassis	Model	—	CA5480JQZ
	Engine model	—	WP12.375
	Rated power/speed	kw/(r/min)	276/2100
	Max. Torque/rotate speed	n.m/(r/min)	1500/1350

Standard Equipments

FAW CA5480JQZ
Main boom assembly
Vice boom assembly
Hanging hook assembly
Windlass assembly
Slewing system
Electric system
Hydraulic system
Outrigger
Superstructure control system
Chassis control system
Tool box
