Specifications
Gas Pipeline
1.Standard:API,ASTM,ISO,GB
2.Anti-corrosion & high strength
3.Easy installation & low costs
4. Long service time
1.Product Description:

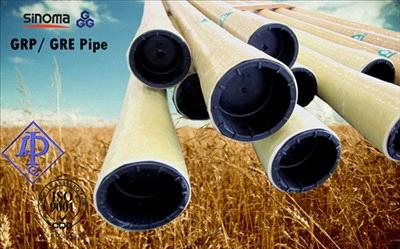

FRP (Fiberglass Reinforced Plastic) Pipe is a kind of composite plastic pipe.
It's combing base material of Resin with reinforced material of Fiberglass Roving.
The production process we used is filament wound process controlled by computer.
Besides, our FRP pipe have a more approperiate name as GRE(Glass Reinforced Epoxy)Pipe, since we use Epoxy Resin instead of Polyester as material.
In fact, GRE Pipe have much superior properties than common FRP Pipe, especially in properties of high pressure resistant.
2.Product Feature:
1. Corrosion resistant
2. High strength, more safety
3. More than 30 years' service life
4. Light weight, easy installation and save costs
5. Smooth internal surface, high delivery efficiency
3.Application:
1.Oil, petroleum, natural gas pipeline
2.Irrigation, hot spring, city water pipeline
3.Brine delivery pipeline
4.Any other corrosive liquid delivery
4.Product Specification:
DN(Nominal Diameter):40mm-800mm
PN(Nominal Pressure):1.0MPa-25MPa
Material: Anhydride or Aromatic Amine Cured epoxy
Temperature: -35℃-65℃ for curing agent as Anhydride;
-35℃-93.3℃ for curing agent as Aromatic Amine.
Joint Type: Thread connection for pipe of DN ≤200mm;
Socket and spigot or key-lock joint for pipe DN 250-800mm.
5.Our advantages:
1.High quality
We're state owned manufacturer with registered capital RMB 200 million specialized in this area. Standard:API-15HR,API-15LR,ISO9001,GB,etc.
2.Competitive price
Our raw material is from PPG SINOMA JINJING FIBERGLASS CO.,LTD, a JV enterprise
invested by our company and PPG industries to ensure high quality and low costs.
3.Great production capacity and short delivery time.
We have 16 production lines for GRE pipe, with annual production capacity of 16000MT.
Should you have any questions or need our price for reference, welcome to contact us.
We'll be glad at your services.
