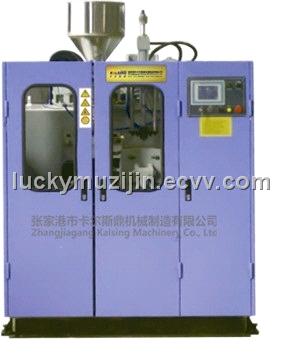

Zhangjiagang City Kalsing Machinery Co., Ltd.
China Manufacturer with main products: Blow Molding Machine, Die Head, Parison Control, Blow moulding machine, Automatic blow molding machine energy, Bottle making machine,... |
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Film package |
Specifications
|
Specifications |
Units |
KAL60series
|
|
Material
|
|
PE.PP.PVC.PA....
|
|
Max container capacity
|
L
|
5
|
|
Number of die
|
set
|
1.2.3.4
|
|
Output(Dry Cycle)
|
Pc/hr
|
1100
|
|
Machine dimension(L×W×H)
|
M
|
3.0×1.7×2.5
|
|
Total weight
|
ton
|
5.8
|
|
Clamping unit
|
|
|
|
Clamping force
|
KN
|
65
|
|
Platen opening stroke
|
mm
|
164-524
|
|
Platen size
|
mm
|
320×380
|
|
Max mould size(W×H)
|
mm
|
380×390
|
|
Mould thickness
|
mm
|
153-300
|
|
Power
|
|
|
|
Max drive
|
KW
|
26
|
|
Total power
|
KW
|
32.5
|
|
Fan power for screw
|
KW
|
0.14×3
|
|
Air pressure
|
Mpa
|
0.6
|
|
Air consumption
|
m³/min
|
0.5
|
|
Average energy consumption
|
KW
|
17
|
|
Extruder unit
|
|
|
|
Screw diameter
|
mm
|
60
|
|
Screw L/D ratio
|
L/D
|
24
|
|
Plasticizing capacity
|
Kg/hr
|
70
|
|
Number of heating zone
|
zone
|
3
|
|
Extruder heating power
|
KW
|
6.5
|
|
Extruder driving power
|
KW
|
11
|
|
Die-head
|
|
|
|
Number of heating zone
|
Zone
|
3
|
|
Power of die heating
|
KW
|
2.5
|
|
Max die pin diameter
|
mm
|
140
|
|
Center distance of double die
|
mm
|
150/160
|
|
Center distance of tri-die
|
mm
|
110
|
|
Center distance of tetra-die
|
mm
|
80
|
