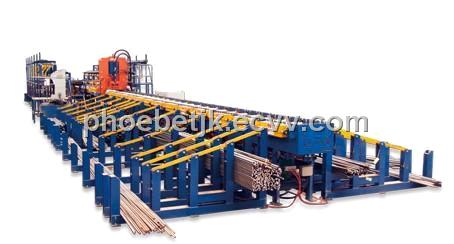

Rebar Shearing Machine GJW-1508

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Rebar Shearing Machine may cut gradeⅠ, grade Ⅱ, grade Ⅲ and grade IV deformed steel bars automatically. The whole set equipment includes cutting unit, transportation unit, storage unit and processing unit. Rebar Shearing Machine is widely used in road, railway, nuclear power construction and other fields.

Rebar Shearing Machine

1, CNC control, automatic cut, stock and distribute the bars (patent).

2, Germany PLC and CNC to ensure high cutting quality.

3, Hydraulic guillotine system.

4, Multiple baffle for quick positioning and high efficiency (patent).

5, Gradient guillotine with high capacity (patent).

6, Bi-side descharge (patent).

7, Groove blade.

8, 6 in-feed units and safety monitors.

9, Variable frequency control on in-feed conveyor.

10, Control systems: SIEMENS, MITSUBISHI, PANASONIC.

TECHNICAL DATA

Model	GJW-1508(Energy Saver)	GJW-200	GJW-300	GJW-600
Shear capacity(T)	150	200	300	600
Installed power(kw)	40	54.3	94.3	120
Conveyor speed(m/min)	90	40-80	40-80	40-80
Cut to length accuracy	6-8	14	14	14
Cut to length	±2	±2	±2	±2
Cut to length accuracy	800-12000	1500-12000	1500-12000	1500-12000
Shear blade width	600	410	510	650
Collecting pockets nos.	8*2	6*2	8*2	8*2
Convery loading capacity	800	800	800	1200
Pressed air(mpa)	0.5	0.6	0.6	0.6
Operation temperature	0-40	0-40	0-40	0-40
Operation humidity	30-85	30-85	30-85	30-85
Bar size(mm)	10.12.16.20.40. 50.22.25.28.32	10.16.22.28.32. 40.14.20.25.30	10.16.22.28.32.40 50.14.20.25.30	16.22.28.32.40 50.20.25.30
Nos.to be sheared(pcs)	20.14.12.8.4.3	20.12.8.4.2.1	26.18.10.8.6.3.1	20.14.12.8.4.3
