Guangzhou 3T Audio Equipment Co., Ltd.
China Manufacturer with main products: Audio Amplifier, Professional Audio Equipment, Soud Amplifier, Soudspeaker |

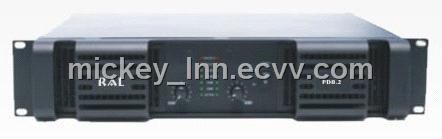

Professional of Audio Power Amplifier PD series
| Supply Ability: | 2,000 Piece/Pieces per Month |
|---|---|
| Shipping: | FOB |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | 575*575*135mm |
Specifications
Features:
1) Amplifier of PD series are of compact structure and light weight, developed and designed specially for performance tour and fixed occasions. PD series can also be matched with all kinds of loading impedance, satisfying the customers with being able to provide individual and flexible connection with various kinds of speakers.
2) The adopted switching power source of PD series is the new solution for weight and dimension. It integrates the high efficiency of patent technology of cooling system, making the weight 60% lighter than the traditional similar amplifiers.
3) American Motorola transistor of high performance is specially adopted, making the dynamic response and timbre more outstanding and smooth. It is of rare inversion circuit of high fidelity.
4) Switching power amplifier audio power source. It owns the technology of double loop syntony and syntonic soft switching, making the unit safe and stable, dynamic performance more outstanding.
5) Constant intellective temperature adjusts the electric circuit. Unique high speed and low noise volition fan is adopted. Along with the high dense copper radiator used for aviation, it can easily reduce of working temperature to the lowest, ensuring the stability of the unit.
Whether you are a wholesaler, Distributor or rental company we at 3Twill bring you reliable, trustable, high premium quality power amplifiers but also maintain a reasonable and competitive price for our partners in building your brand name.
We are willing to work with you to create a brilliant future and becoming one of our faithful co-operative partners.
Please contact for a catalog and information.
|
Technical Parameters:
|
||||
|
Model
|
PD6.2
|
PD8.2
|
PD10.2
|
PD12.2
|
|
8Ω Stereo Power
|
1000W*2
|
1300W*2
|
1500W*2
|
1800W*2
|
|
4Ω Stereo Power
|
1600W*2
|
2080W*2
|
2400W*2
|
2880W*2
|
|
2Ω Stereo Power
|
2320W*2
|
3016W*2
|
3480W*2
|
4176W*2
|
|
8Ω Bridge Power
|
3200W
|
4160W
|
4800W
|
5760W
|
|
4Ω Bridge Power
|
4275W
|
5687W
|
6560W
|
7695W
|
|
Frequency
|
20Hz-20KHz+0/-0.5dB
|
|||
|
THD+N
|
<0.05%@8Ω 1KHz
|
|||
|
S/N rate
|
>105dB
|
|||
|
Slew rate
|
40v/us
|
|||
|
Damping factor
|
>450@8Ω
|
|||
|
Crosstalk
|
>100@8Ω 1KHz
|
|||
|
Input impedance
|
20KΩ(balance)/10KΩ(unbalance)
|
|||
|
Input sensitivity
|
0.775v, 1.0v, 1.44v
|
|||
|
Protect
|
DC, short circuit, over heat, softstart, VHF, ect.,
|
|||
|
Control
|
Front panel: power stich/cha chb volume rear
|
|||
|
Height
|
2U
|
|||
|
Packing
|
575*575*135mm
|
|||
|
Volume
|
0.05m
|
|||
|
Gross weight
|
10.5kg
|
11.5kg
|
12.5kg
|
13.5kg
|
