Hebei Zidong Pump Industry Co., Ltd.
China Manufacturer with main products: Slurry Pump, Sand Pump, Dredge Pump, Sewage Pump, Submersible Pump, Centrifugal Pump, Pump Spare Parts, Chemical Pump |
Specifications
Sewage Submersible Pump:
1.High effective
2.Low consumption
3.Max.Temperature 60 celsius
4.Long life time
1.High effective
2.Low consumption
3.Max.Temperature 60 celsius
4.Long life time

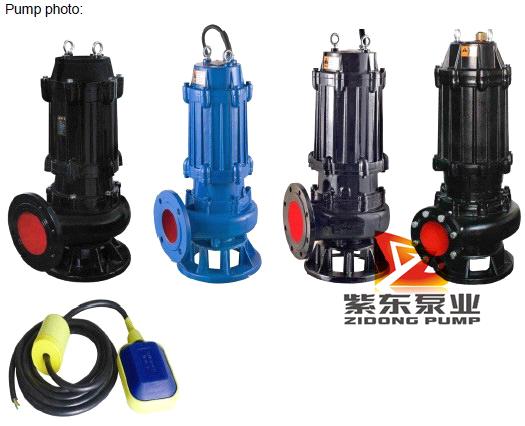

WQ Series Sewage pump
WQ series submersible sewage pump is mainly used for municipal work, industrial building, hotels, hospitals, civil air defense, mines, etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fibers.
Model Description
50 WQ 15-8-0.75
50: Drain aperture (mm)
WQ: Submersible sewage pump
15: Capacity (m3/hr)
8: Head (m)
0.75: Power (kW)
Operations Conditions
- The medium temperature should not be over 60 celsius, the density 1200Kg/m3, and the PH value within 5-9.
- During running, the pump must not be lower than the permitted lowest liquid level.
- Rated voltage 380 V, rated frequency 50 Hz. The motor can run successfully, only under the condition the deviations of both rated voltage and frequency are not over ±5%.
- The maximum diameter of the solid grain going through the pump has not to be larger than 50% of that of the pump outlet.
|
Model |
Voltage (V) |
Flow (m3/h) |
Head (m) |
Power (kw) |
Speed (r/min) |
Pipesize (mm) |
|
65QW30-40-7.5
|
380
|
30
|
40
|
7.5
|
2900
|
65
|
|
65QW35-50-11
|
380
|
35
|
50
|
11
|
2900
|
65
|
|
65QW35-60-15
|
380
|
35
|
60
|
15
|
2900
|
65
|
|
80QW65-25-7.5
|
380
|
65
|
25
|
7.5
|
2900
|
80
|
|
100QW80-20-7.5
|
380
|
80
|
20
|
7.5
|
1450
|
100
|
|
100QW100-15-7.5
|
380
|
100
|
15
|
7.5
|
1450
|
100
|
|
100QW100-25-11
|
380
|
100
|
25
|
11
|
1450
|
100
|
|
100QW100-30-15
|
380
|
100
|
30
|
15
|
1450
|
100
|
|
100QW100-35-18.5
|
380
|
100
|
35
|
18.5
|
1450
|
100
|
|
125QW130-15-11
|
380
|
130
|
15
|
11
|
1450
|
125
|
|
125QW130-20-15
|
380
|
130
|
20
|
15
|
1450
|
125
|
|
150QW130-20-11
|
380
|
130
|
20
|
11
|
1450
|
150
|
|
150QW130-30-22
|
380
|
130
|
30
|
22
|
1450
|
150
|
|
150QW145-9-7.5
|
380
|
145
|
9
|
7.5
|
1450
|
150
|
|
150QW160-45-37
|
380
|
150
|
45
|
37
|
1450
|
150
|
|
150QW180-15-15
|
380
|
180
|
15
|
15
|
1450
|
150
|
|
150QW180-20-18.5
|
380
|
180
|
20
|
18.5
|
1450
|
150
|
|
150QW180-25-22
|
380
|
180
|
25
|
22
|
1450
|
150
|
|
150QW180-30-30
|
380
|
180
|
30
|
30
|
1450
|
150
|
|
150QW200-30-37
|
380
|
200
|
30
|
37
|
1450
|
150
|
