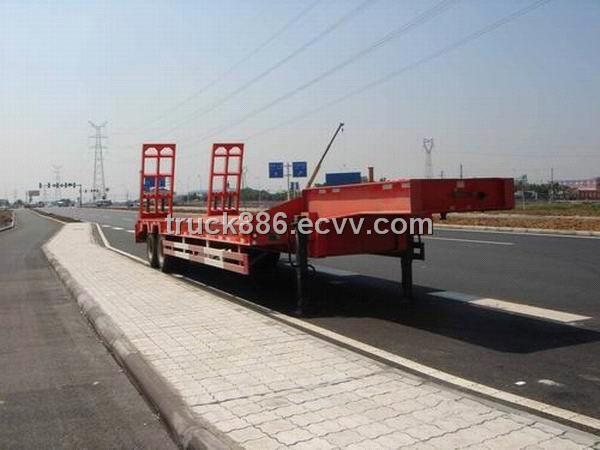

semi-trailer

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

35,000L-40,000L Oil Tank Semi-trailer

General Description
Vehicle Model	CLQ9401GYY
Vehicle Brand	CHUFEI
Overall Dimension	L11000 × W2495 × H3800mm
GVW. / Kerb Wt. / Payload	40,000kg / 12,000kg / 28,000kg
Fifth Wheel Load Approx.	16,000kg
Chassis
Heavy duty reinforced chassis with reinforced axle. The tank's framework consists of two fabricated steel beams of high quality 16Manganese steel. The two beams are fully welded all over their length on the tank. The beams are strongly connected with the cross members supporting the suspension and the kingpin upper coupler.
Running Gear
Axles	BPW / FUWA brand ect, 3×13tons double wheels with drum brakes
Landing Legs	JOST / FUWA brand; Heavy duty, mechanical 2-speed manual operation, 28,000kg per pair
Suspension System	3 axles mechanical suspension
King Pin	JOST / FUWA brand etc; DIN standard 2inch or 3.5inch, bolted and welded type are optional
Tyres Brand and Size	Triangle / Double Coin brand etc;12pcs; Tyre size:11.00-20,11.00R20, 315/80R22.5
Mudguards
Heavy duty mudguard with rubber mud-flaps.
Bumpers
Side bumper mounted between landing gear and first axle, rear bumper is European standard.
Brake
Dual circuit pneumatically operated; Mechanically opreated brake pressure regulator and release valve;
Electic System
24V lighting system, 7-pole distribution cable, electrical socket for lighting; Rear lamp with parking, direction, fog, reverse, licence lights and 4 side lights
Tank Body
Tank Shape	Elliptical or Rectangular
Total Volume	35,000ltrs ~ 40,000ltrs + 3% expansion space
Compartments	According to demand; Tank equipment for each compartment
Tank Material	High quality carbon steel, 6mm
End Cover and Baffles	6mm end covers; One compartment with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.
Outlet Valve	Size 4〞ball valves fixed with cam-lock coupling in the discharge box
Manhole	7pcs manhole covers with filling opening, pressure relief valve
Necessary Accessories	Top access steel ladder, anti-slip walkway and foldable handrail; Spare wheel carriers, a water tank, an anti-static device, 2 pcs of fire extinguishers, 2 pcs of lockable discharge hose carriers on both sides and reflective stickers etc.
