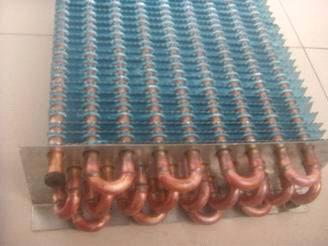

copper tube evaporator S-049

Inquiry Now

Place of Origin:	Henan in China
Packaging Details:	carton & wooden box seaworthy delivery

Specifications

Technical Properties

Main Material	Copper tube: O.D. can be 7, 7.94 or 9.52 Wall thickness: t=0.32 ～ 0.36 for smooth tube or inner thread tube Aluminum foil: smooth foil, hydrophilic foil (green antibacterial hydrophilic foil or slica antibacterial foil) Side Plate: galvanized steel plate 0.8~2.0
Application Scope	1) 1~5P Household Air Conditioner 2) Automobile Air Conditioner 3) Household Central Air Conditioner
Main Process	Bending, sheet punching, expanding, degreasing, welding assembly, leakage test, dehydration drying, (fold bending), inspection and packaging
Technical Specification	Size	Hole Distance	Sheet Type	Technical Capacity
	Φ 7	21×12.7 isosceles triangle	ripple, bridge, shutter	6 rows with 36 holes; expansion pipe ≤1800mm; sheet distance is 1.2~1.9
	Φ7.94	22×19.05 equilateral triangle	ripple, bridge	4 rows with 36 holes; expansion pipe ≤1200mm; sheet distance is 1.2~2.0
	Φ9.52	25×21.65 equilateral triangle	plain, bridge, ripper	6 rows with 44 holes; expansion pipe ≤2500mm; sheet distance is 1.2~2.0
Product Performance	It can meet cooling and warming requirements of all air conditioners.

R134a Refrigeration System Inner Pipe Standard

Residual Moisture	≤ 25 ㎎ / ㎡
Residual Impurities	≤ 30 ㎎ / ㎡
