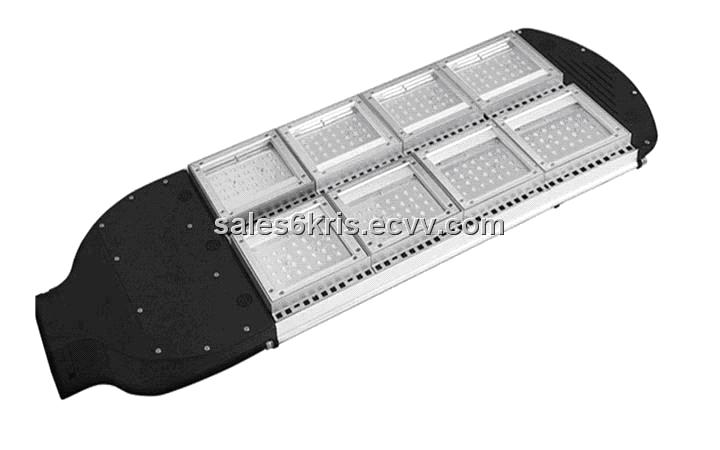

LED Street Light AOK-110-224W

FOB Price:	600.00 - 700.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	15-20 days after order confirmed
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

LED Street Light

Price:400.00-500.00 USD/Piece

Min. Order:5 Pieces
Solar Street Lamp

Price:

Min. Order:1 Piece
LED Street Lamp

Price:

Min. Order:
200W LED

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	1 pc /Carton

Specifications

Model Number	AOK-110-224W
Input Voltage	12 or 24VAC/DC For Solar or wind energy
Frequency Range	47~63Hz
Power Factor(PF)	＞0.92
Total Harmonic Distortion(THD)	＜20%
Power Efficiency	85%
Working Voltage	85-264VAC, 12 or 24VAC/DC
LED Consumption	224W
LED Luminous Efficiency	40W
LED Initial Flux?	≥90lm/w
LED Maintain Flux	20,000 lm (Tj=25℃)
Lamp Output Flux	18,600 lm (Tj=60℃,Ta=25℃)
	16,800 lm (Tj=60℃,Ta=25℃)
Lamp's Efficiency ( %)	＞90%
Illumination ( E )	( m)≥120.0 Lux (Replace Sodium light of 200 Lux)
	( m) ≥67.5 Lux (Replace Sodium light of 113 Lux)
	( m) ≥42.0 Lux (Replace sodium light of 70 Lux)
	( m) ≥30.0 Lux (Replace sodium light of 50 Lux)
Effective Illuminated Area	( m): 20 x 8m
	( m): 26 x 10m
	( m): 33 x 13m
	( m): 40 x 16m
Color Temperature	Pure White; Warm White; Cool White
Color Index(CRI)	Ra＞78
Light Source	High Power 1Watt LED
Light Distribution Curve / Beam Pattern	Asymmetric (Bat Wing)/ Rectangular Beam
Beam Angle	120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, °The Vertical Axis:45°
Junction Temperature ( Tj )	60 ℃ ±10 %( Ta=25℃)
System Resistance ( Rja )	0.19°C/W
Working Temperature	-30 ~ 50
Working Humidity	10%~90%
Storage Temperature	10 ~85
Working Life	50,000 Hrs
Light Body & Lampshade Material	Aluminum Alloy and PC
The Dimensions(Units : mm)	1,210(L) x 315(W) x 90(H)
Net Weight (g)	18.5 Kgs
IP Rating	IP65
Packing	1 pc /Carton
Carton Size	1,230 x 400 x 220 mm
Container Q’ty (pcs)	20’Q: 200 pcs 40’Q: 400 pcs, 40’HQ: 450 pcs
