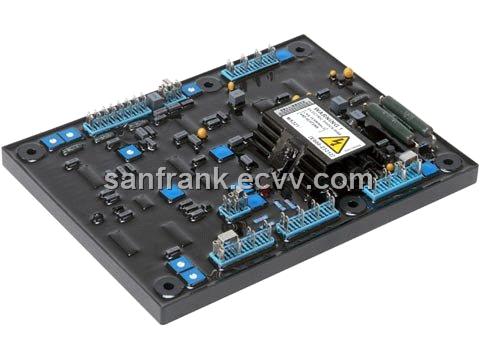

Newage Stamford AVR MX321

FOB Price:	1.00 - 100.00 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Week
Shipping:	within 3days after we receive the deposit
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	1815.37cm plain box and weight 0.45kg per pc

Specifications

STAMFORD AVR: MX321
SX460, SX440, MX341,MX321, AVR-8A, AVR-12A, AVR-15A
Leroy Somer AVR:
R230,R438, R448,R449

Stamford AVR MX321, Stamford Automatic Voltage Regulator, Stamford Voltage Regulator, Stamford Part, Stamford Spare Part, Automatic Voltage Regulator(AVR), Generator AVR.

The MX321 has all the features of the MX341, additionally achieving voltage regulation in the order of 0.5 %. There is also the facility for 3-phase RMS sensing, built in overvoltage protection and optional short circuit current level adjustment.

The combination of PMG providing an isolated power source and the MX321's RMS sensing makes an ideal arrangement for supplying the non-linear loads associated with UPS systems.

We supply the following STAMFORD, LEROY SOMER, MARTHON AVR:

1. STAMFORD AVR:

1) SX460
2) SX440
3) MX341
4) MX321

5)AVR-8A
6)AVR-12A
7)AVR-15A

2. LEROY SOMER AVR
1) R230
2) R438
3) R448
4) R449

3. MARTHON AVR:

SE350

STAMFORD AVR MX321

1. Specification:

MX321 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brushless alternator with PMG, such as Stamford or Stamford technical alternator.

2. Technical specification:

Input

Voltage 170~220VAC, 3 phase 3A(PMG)

Frequency 50~60Hz

Induction detect 170~250VAC, 2 phase or 3 phase

Output

Voltage Max 120VDC

Current Continuous 3.7ADC

Intermittent 6A for 10 seconds

Protection Low speed, over excitation, over-voltage, over-current, LAM

Regulation +/- 1.0%
