v shape cutting saw for pvc window and door

FOB Price:	2,000.00 - 5,000.00 USD/Set
Supply Ability:	200 Set/Sets per Month
Shipping:	QINGDAO ,CHINA
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Digital Display Double Head Cutting Machine KT-...

Price:

Min. Order:1 Set
Automatic Cutting Machine

Price:1000.00-5000.00 USD/Set

Min. Order:1 Set
CNC Plasma Cutting Machine

Price:

Min. Order:1 Set
Triple-Roller Crumbler

Price:500.00-1,000.00 USD/Set

Min. Order:1 Set
CNC Wood cutting machine

Price:4000.00-5500.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	POLYWOOD CASE PACKING,13805601350mm

Specifications

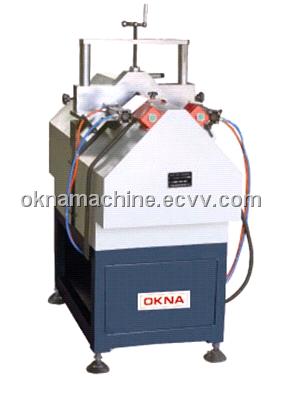

PVC win door v shape cutting saw

Model: LJVW-60

The machine is used for processing 90° V-shaped grooves of the aluminum and plastic, with the pneumatic driving system, it has the features of easy operation, safety, reliability, long life and high efficiency.

Working condition:Three phase four wire power supply,air pressure:0.5-0.8mpa

Working environment:5-35℃,dry , without dust,non corrosive environment.

Technical data:

1. Power supply:three phase, four wire,380v,50hz

2. Motor power:1.5kw

3. Motor rotation speed:2800r/min

4. Air pressure:0.5-0.8mpa

5. Air consumption:80L/mpa

6. Depth of cutting:0-60mm

7. Thickness :0-120mm

8. length of pvc locate:1600mm

9. saw specification:300*3.2*30

10. Dimension:1380*560*1350mm

11. Weight:240kg
