Specifications

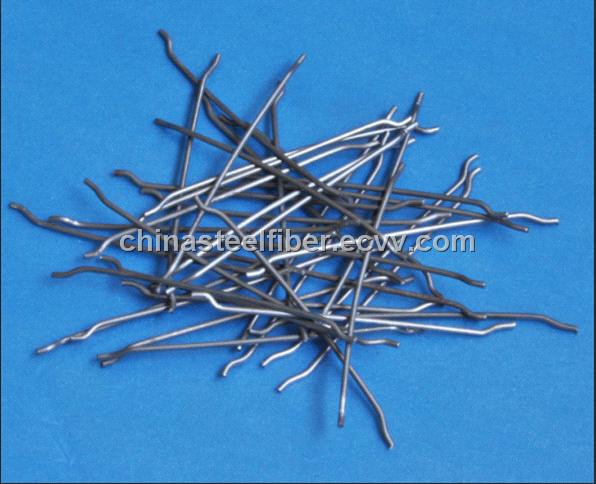

*Description:hook ends steel fiber is processed by the carbon steel wire according to the theory of cold-work hardening, cut to lengths, this process increases the steel fiber’s strength and hardness. For the reinforcement project of concrete, hook ends steel fiber plays important role, especially in expansion joint of bridge deck, expressway, tunnel lining, industrial floor/slab, etc.
*Geometric parameter:
|
STEEL FIBER TYPE
|
SIZE(mm)
|
ASPECT RATIO(l/d)
|
GRAVITY
(g) |
FIBERS PER KG
(approx.)
|
|
HOOK ENDS STEEL FIBER
|
25*0.55
|
45
|
0.057
|
17543
|
|
35*0.5
|
70
|
0.052
|
19230
|
|
|
50*0.9
|
55
|
0.24
|
4166
|
|
|
60*0.75
|
80
|
0.22
|
4545
|
|
|
50*0.73
|
68
|
0.17
|
5882
|
We can manufacture the steel fiber in any size according to your requirement.
*Tensile strength:
-The minimum is 1000N/mm2
*Application:
·City streets
·Local roads
·Interstate highways
·Parking areas
·Taxiways
·Airport aprons
·Industrial floors
·Overlays & toppings
·Bridge deck overlays and walls
·Barrier walls
*Technical data:
-Steel fiber reinforced concrete has the same mixing sequence with the plain concrete in the batching plant mixing process, what is the most important, it is forbidden to add the steel fiber as the first component mixture.
-Total mixing time 6minutes max., the specific mixing time should be done according to the dry/wet mixing requirement.Moreover, the mixing lasts about 2minutes when all of the components including steel fiber is added, too short mixing time will not play the steel fiber’s reinforcing role, too long will cause balling.Adding it to the batch plant mixer in batches and small trial before mass mixing is recommended.
-Steel fiber percentage in reinforced concrete
|
Steel fiber reinforced concrete project types
|
Steel fiber percentage in reinforced concrete(%)
|
|
Precast concrete project
|
0.5-2.0
|
|
Compression element, precast pile, bridge surface, top of pile,point of pile
|
1.0-1.5
|
|
Railway tie, water-proof concrete/mortar roof
|
0.8-1.2
|
|
Shotcrete
|
0.5-1.5
|
-Steel fiber reinforced shotcrete’s rebound percentage
About 5-12%,10-18% less than the plain shotcrete, and the best shotcrete equipment is double shaft forced mixer.
-Steel fiber reinforced concrete’s slump
Pumping: 150+/-30mm Pouring: 120+/-30mm
*Quality:
YB/T151-1999<<STEEL FIBERS FOR REINFORCED CONCRETE>>
JG/T3064-1999(Standard of steel fiber reinforced concrete in construction)
Test report by China National Centre for Quality Supervison and Inspection of Metal Products.
?
