Qiya Laminates Co., Ltd.
China Manufacturer with main products: Electrical Insulation Sheets, Electrical Insulation Rod, Electrical Insulation Tube |
HP2061 Phenolic paper laminated sheets
| Shipping: | 1) Within 15 days after receipt of full payment 2) For L/C: As per quantity of order |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | - In solid pallet with protective film inside - Pallet dimensions: As per sheet size - Weight: Abo |
Specifications

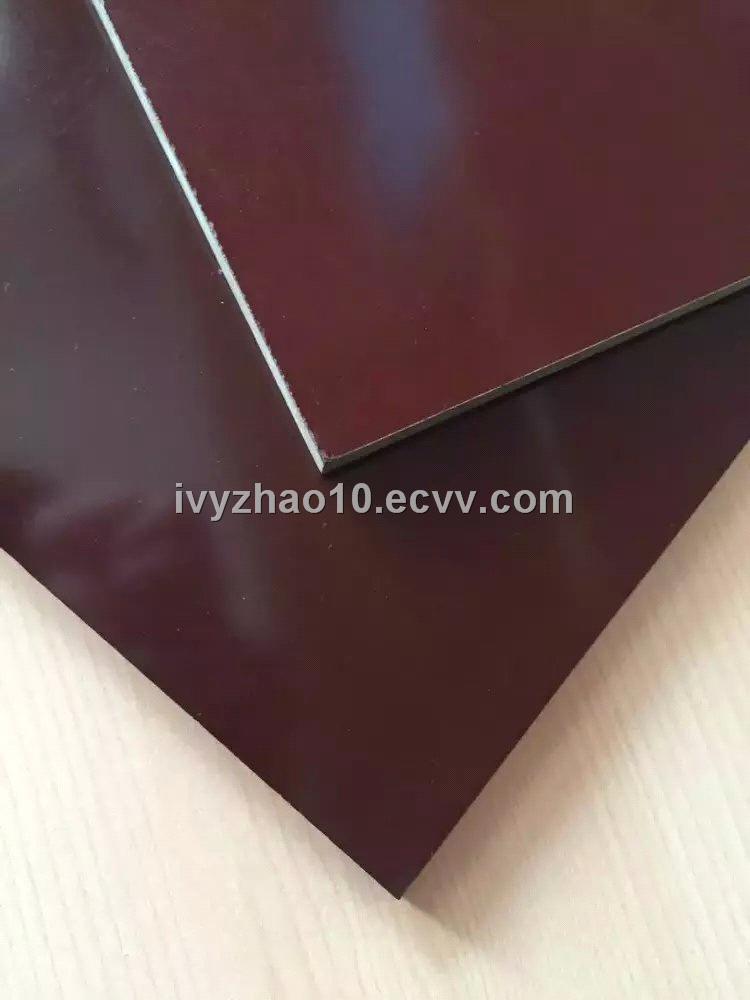

HP2061 Phenolic paper laminated sheets
Description: Phenolic paper laminated sheets are made of electric insulating craft paper impregnated with phenolic resin by being processed under heat and pressure.
Type: HP2061
Ref: HP2061.DIN-7735 (9/75). / X, XP. NEMA LI-1/3021
Mark: 3021B and 3021C are similar to 3021, but with lower properties.
Applications:
Thermal grade E, suitable for using as insulating structural
parts of machinery and electric equipments; such as electric generators,
motors, switch boards, etc.
Characteristics:
-Good electrial property,
-Good mechanical property,
-Good heat resistance,
-Excellent acid resistance
-Easy to process
Available:
- Nominal dimension: 1020×1220mm, 1020×2040m, 1220×2440mm
- Thickness: 0.5 mm–50 mm
- Colour: Brown and Black
- Surfaces: Shining
Packing:
- In solid pallet with protective film inside
- Pallet dimensions: As per sheet size
- Weight: About 1,000 kgs per pallet
Delivery Time:
1) Within 15 days after receipt of full payment
2) For L/C: As per quantity of order
For detailed technical information, please check files in download section or freely contact us.
Phenolic Paper Laminated Sheets from this supplier
Min Order: 1000
FOB Price: 60,000.00-135,000.00 USD/Set
Min Order: 1 Set
FOB Price: 0.50-10.00 USD/Piece
Min Order: 1 Piece
