Mobile Stone Crushing Production Line with ISO Certificate
| FOB Price: | 999,999.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | With in 30 days after receiving your prepayment or effective LC |
| Payment Terms: | L/C, T/T, Negotiable |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | In container/nude/bulk |
Specifications

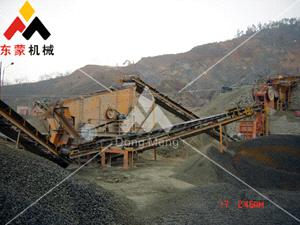

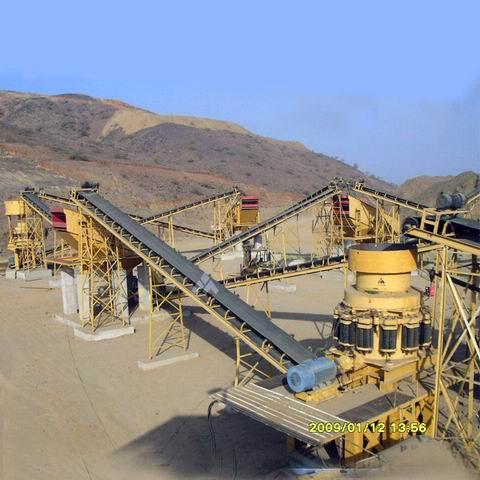

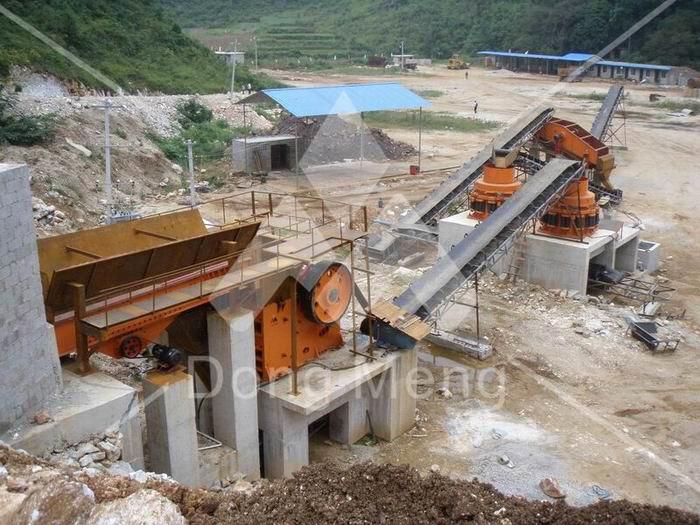

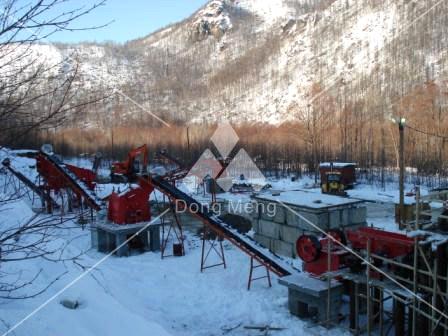

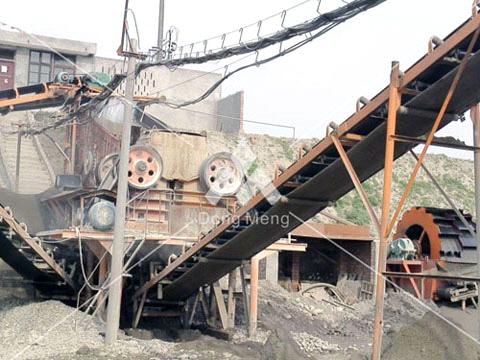

Mobile Stone Crushing Production Line with ISO Certificate
DongMeng provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.
Supply range of DongMeng Stone-Crushing Production Line
1. Vibrating feeder, two types of GZD and ZSW to meet user’ s different processing capacity;
2. First crushing: Jaw crusher, or Impact crusher, or cone crusher to meet user’ s choise
3. Secondary crushing: fine jaw crusher, or impact crusher, or cone crusher(spring type, spring and hydraulic type, hydraulic type)
4. Vibrating screen, YK series, linear series, DF series
5. Belt conveyor, stationary type, or mobile type
6. Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc.
7. Electric control cabinet,
8. Diesel power generation set for choosing.
Advantages of DongMeng Brand of Stone-Crushing Production Line
1. Complete stone production line, near to turn-key project;
2. Stationary type or mobile type for choosing
1. Complete stone production line, near to turn-key project;
2. Stationary type or mobile type for choosing
3. First class workmanship
4. Reliable quality with CE approved, reaching to European standard5. Updating in design and function year by year, forms our own unique design by considering of saving more cost and improve the processing capacity for user’ s consideration.
4. Reliable quality with CE approved, reaching to European standard5. Updating in design and function year by year, forms our own unique design by considering of saving more cost and improve the processing capacity for user’ s consideration.
6. Invention technical patent kept.
Technical Specifications
Users can choose his most suitable model according to his production demands
|
Raw material
|
Capacity
|
Feeder
|
Primary crusher
|
Secondary crusher
|
Screen
|
|
Stone/limestone
|
30-50
|
GZD300*90
|
PE400*600
|
PF1010
|
3YK1237
|
|
Stone/ limestone
|
50-80
|
ZSW380*96
|
PE500*750
|
PF1210
|
3YK1548
|
|
Stone/ limestone
|
80-120
|
ZSW380*96
|
PE600*900
|
PF1214
|
3YK1860
|
|
Stone/ limestone
|
120-200
|
ZSW490*110
|
PE750*1060
|
2*PF1214
|
3YK2160
|
|
Stone/ limestone
|
200-300
|
ZSW590*110
|
PE1000*1200
|
2*PF1315
|
3YK2460
|
|
Stone limestone
|
300-400
|
ZSW590*110
|
PE1000*1200
|
2*PF1315+2*PF1214
|
2*3YK2460
|
|
Stone/ limestone
|
400-500
|
ZSW590*110
|
PE1200*1500
|
2*PF1315+2*PF1315
|
2*3YK2460
|
Note: This specification is just for reference, any changes are subject to the products..
