C21 Color Steel Sheet Forming Machine

FOB Price:	15,000.00 - 20,000.00 USD/Set
Supply Ability:	2 Set/Sets per Month
Shipping:	within 60 working days after we get 50%TT as deposit
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Africa, Oceania, Mid East, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Fit For Shipping Ocean

Specifications

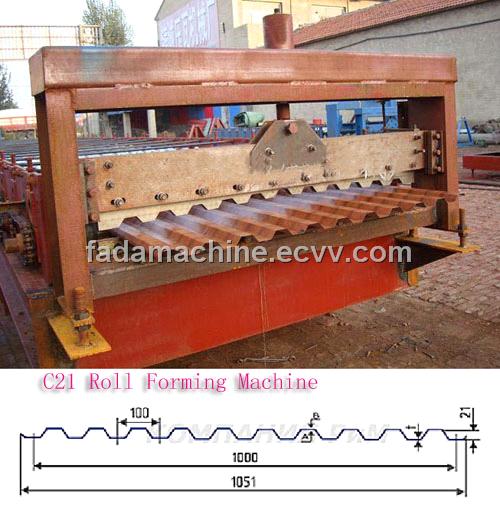

C21 Color Steel Sheet Forming Machine & Color Roofing Machine

1-1.Processes and components

handle-uncoiler—Roll forming machine—computer control system—hydraulic control system-forming cutter -receiving table

2. Main Specification and components:

2-1. Main Specification:

No.	Main parameter of roll forming machine
1	suitable material	Steel plate
2	Width of the plate	1250mm
3	Rows of rollers	18 stations
4	Size	8.01.61.2m
5	Power	4kw+3kw
6	Reducer	Cycloidal planetary speed reducer,4# reducer,speed ratio 1:59
7	Mid-plate thickness	12mm
8	Frame of structure	300“H”steel
9	Chain	1Inch
10	Thickness of raw material	0.3-0.8mm
11	Productivity	8~10m/min
12	diameter of shaft	45# steel,solid shaft. ￠70mm
13	Weight	About 5T
14	Voltage	380V 50Hz 3phases

2-2 .Specification of components

No		Technical Specification & Remark
1	handle uncoiler	Hold the coils heet. 1.1Coil inner diameter:500-600mm 1.2Max coil width:1000-1200mm 1.3Carrying capacity:5000kg
2	Feeding platform	Function and feature: put the raw material (steel plate) on the plat to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
3	Main machine	In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard planting, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the roller also can keep the plate surface smooth and not easy to be marked when it is being stamped. Rolling galvanization thickness:0.05 mm Rolling material: Forging Steel 45#
4	Shearing mechanism	It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. It contains one set of cutting tools, one hydraulic tank Material of the cutting blade :Gcr12
5	Hydraulic system	It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Hydraulic oil :40#
6	Computer control cabinet	It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within ±2.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand : Delta text screen operation The seller should provide Chinese and English language screen. Mitsubishi PLC
7	Counter	One counter gauges length, pulses, and decides length.

Stacker

3 meter
