Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Packing according to customer's requirement.

Specifications

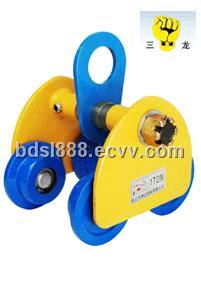

Name: GCT Hand Push Monorail Trolley
WLL:0.5-10 ton

Monorail trolley contains hand pull trolley and hand push trolley, pull trolley is driven by hand chain, and hand push trolley driven by pushing the lifting loads. It runs freely at the bottom flange of I beam, and distance between wheel flange can be adjusted according to the track width of I beam. A manual hoist traveling block can be formed by putting the chain block hangs under the trolley.

Usage: The trolley runs at the bottom flange of I beam, it can become a bridge, single beam & arm crane when matched with chain blocks. Monorail trolley is widely used in factory, mine, wharf, storage and construction site, for installation of machines and load lifting occasion, especially suitable for nonelectrical operation.

Model		GCT0.5	GCT1	GCT1.5	GCT2	GCT3	GCT5	GCT10
WLL (ton)		0.5	1	1.5	2	3	5	10
Proof load (kn)		7.35	14.71	22.06	29.42	44.13	61.29	122.58
radius of min curve it can pass through (m)		0.9	1.0	1.0	1.1	1.3	1.4	1.7
dimension (mm)	A	210	230	235	240	270	290	362
	B	165	203	228	243	271	305	389
	C	213	235	236	280	320	360	490
	H	98	115	125	125	140	160	275
	F	1.5-3
Track width (mm) national standard		68-94	68-100	88-118	94-124	116-140	142-180	142-180
N.W. (kg)		4.8	7.7	12.8	12.8	24.5	43	88

Note: Non-standard Lifting height trolley and large tonnage monorail trolley can be customized.
