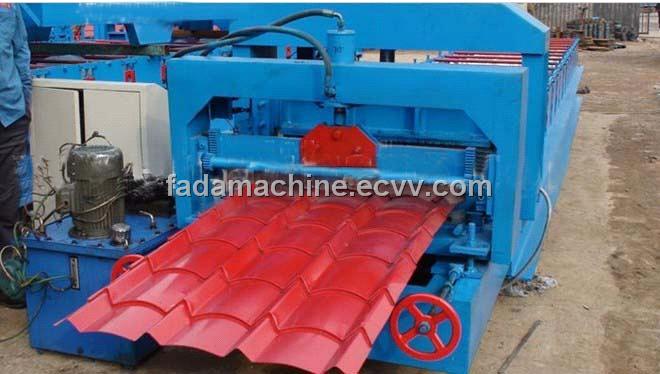

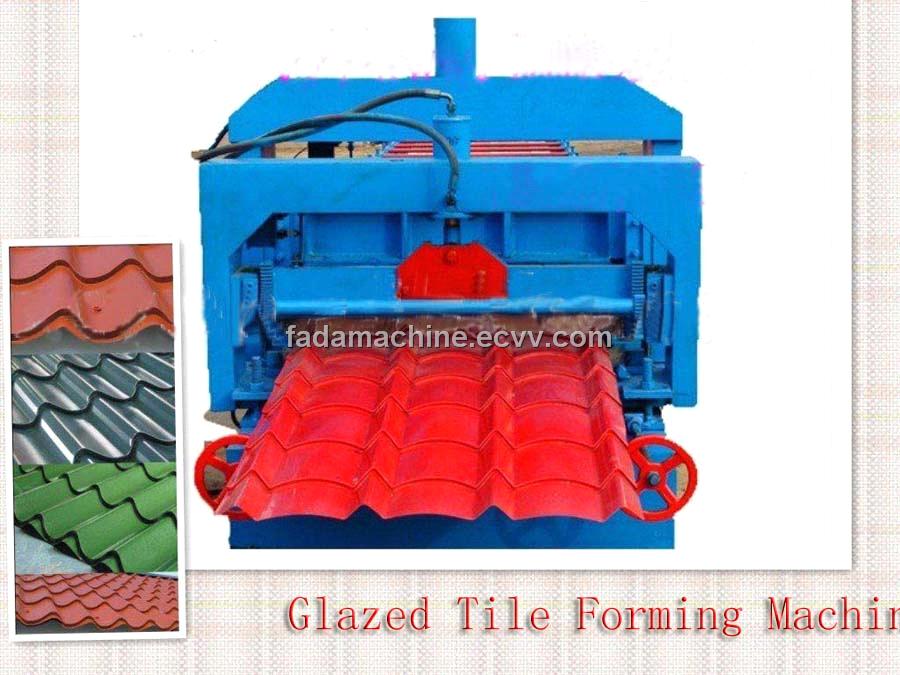

Trapezoidal Profile Glazed Tile Forming Machine
| FOB Price: | 18,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 50Working Days After We Get 50%TT As Deposit |
| Payment Terms: | T/T |
Related products from verified members
-
Price:20,000.00-30,000.00 USD/SetMin. Order:1 Set -
Price:19,800.00-21,500.00 USD/SetMin. Order:1 Set
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Fit For Ocean Shipping |
Specifications
Through the following contents, you can learn more about trapezoidal profile glazed tile forming machine:
1) Manual Un-coiler(Option Hydraulic un-coiler)
Un-powered; single head;
max.capacity: 5000kg;
Coil inner-diameter: 508mm
Coil inner-diameter: 508mm
(2) Roll-Forming M/C:
Steps:13 Roller Material: 45# steel
Steps:13 Roller Material: 45# steel
Voltage:380V/50Hz. line speed:3-6m/min;
Rolling chromium thickness:0.05 mm
(3) Cutting Mechanism
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.
Stop to cut , Post cut cutting length tolerance: ±2mm
Cutting tool material: GCr12 with quenched treatment 60-62
(4) Hydraulic System
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.
Power of the oil pump: 3kw Hydraulic oil :40#
(5)Computer control cabinet :
It adopts Taida PLC to control. The target piece length is adjustable and digit of it can be adjusted
Computed mode has two modes: automatic and manual one.
(6)Counter :
One counter gauges length, pulses, and decides length
