Glazed Steel Tile Roll Forming Machine (820)

Supply Ability:	10 Set(s) per Month
Shipping:	50Working Days After We Get 50%TT As Deposit
Payment Terms:	L/C, T/T

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Fit For Ocean Shipping

Quick Details

Glazed Steel Tile Roll Forming Machine

1. Profile	1.1 Type: Glazed Tile Roll Forming Machine 1.2 Feeding width: 710 milimeter 1.3 Suitable to press: galvanized sheet, coated color sheet, Aluminum sheet. 1.4 Thickness of sheet: 0.3-0.8mm
2. Process Flow	Decoiling--Feeding--Forming cutting Production off-discharging
3Decoiler	3.1 Coil inner diameter: 508± 30mm 3.2 Max coil width: 710-1200mm 3.3 Carrying capacity: 5000kg
4. Forming Device	4.1 Shaft material: 45# steel finish machining; soild shafting, Roller diameter: 70mm 4.2 Roller Material: 45# steel, rough finish by common lathe, finish machining by CNC lathe, polishing, platining hard chrome 4.3 Axis of roller: 13rows 4.4 Chains transport: 1inch chain 4.5 Forming Speed: 3-5m/min 4.6 Main motor power: 4kw 4# reducer speed ratio 1:59 4.7 MID-plate thickness: 14mm 4.8 Dimension: 7.5m(length)1.5m(width)1.2m(height) 4.9 Total weight: about 4.5Ton 4.10 Frame of structure: 300 channel steel
5. Cutting Device	5.1 Hydraulic shearing 5.2 Blade material: Cr12 steel, coarse grinding, heat treatment, finish grinding. Wire-electrode cutting. 5.3 Cutting system: Adopt hydraulic drive, automatic cutting after forming, no distorting and wasting, high level safety factor. 5.4 Diameter of hydro-cylinder: 80mm, route: 100mm
6. Controlling System	Adopt industry transducer PLC controlling system Brand name: Mitsubshi Made in Japan Computer control length and pics. Tolerance± 3mm.
7. Rotray encounter	" Rip' Brand

Processing Flow

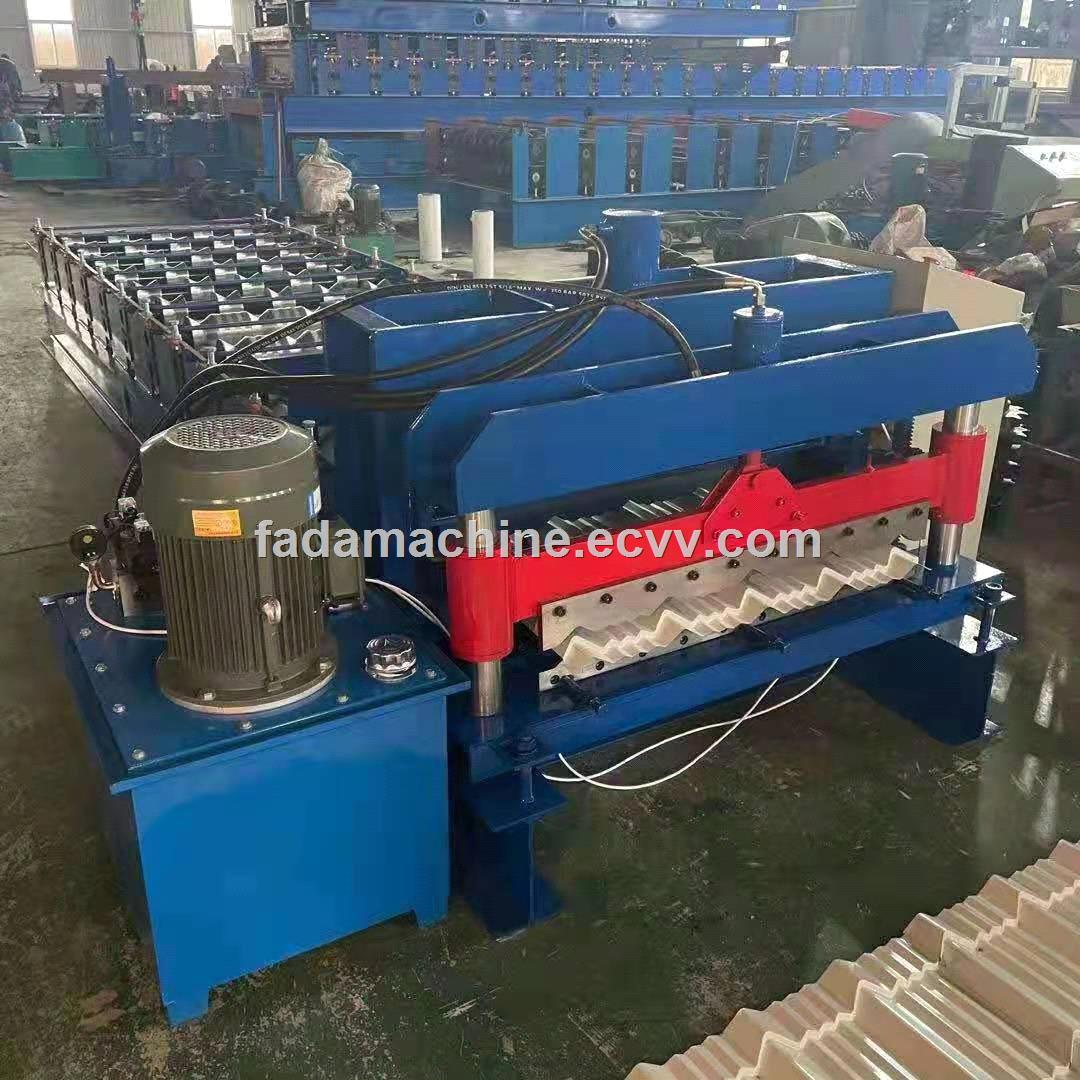

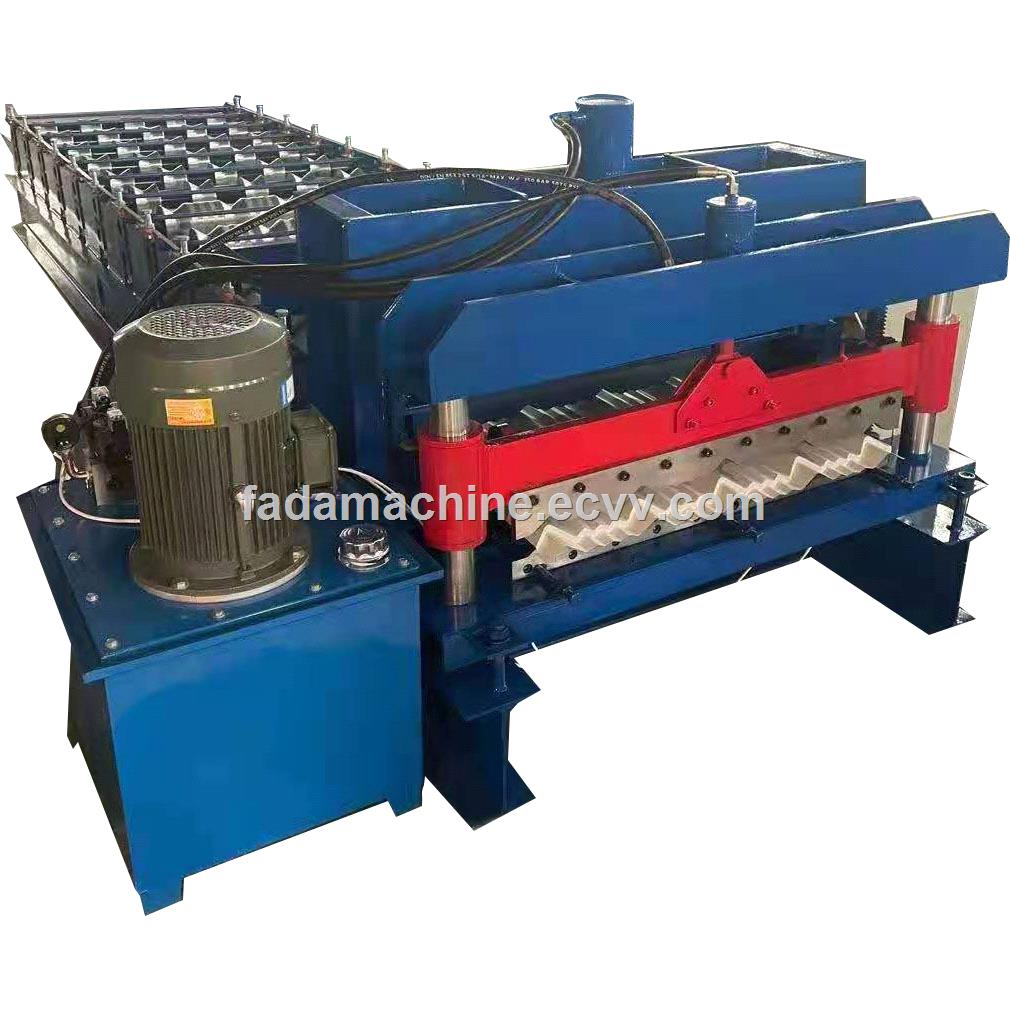

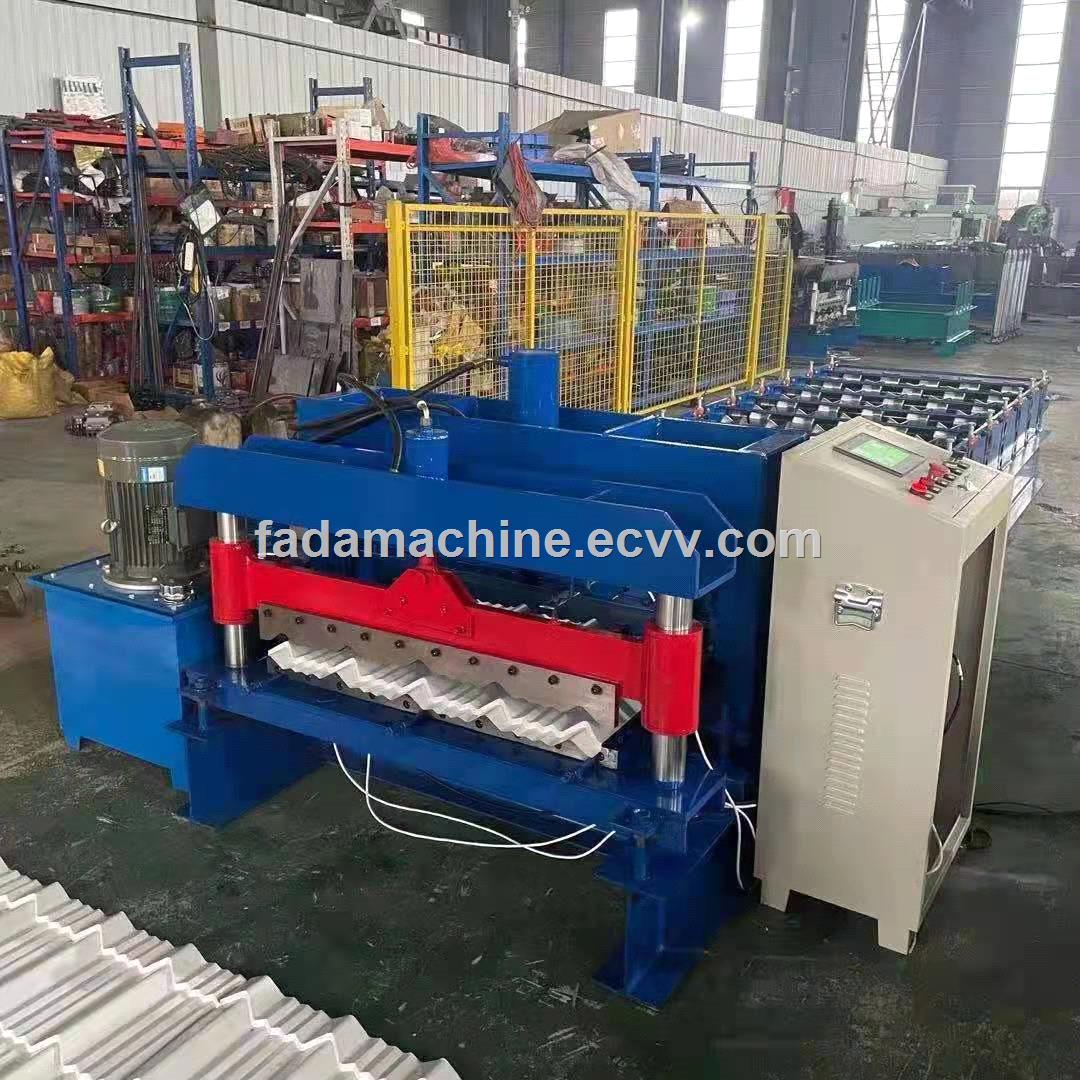

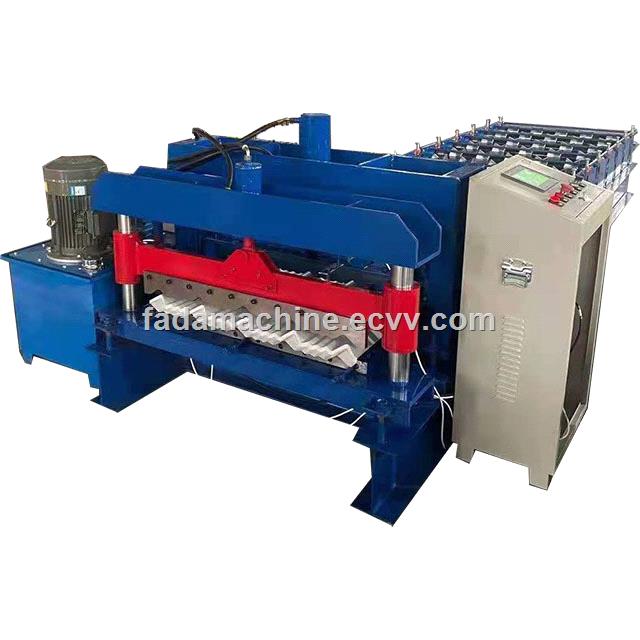

Glazed Steel Tile Roll Forming Machine 820
