Home  >Products Catalog > GPS Tracker Locator > GPS103B Car GPS Vehicle Taxi Truck Tracker GSM GPRS SMS Tracking on Google Map or online Platform

GPS103B Car GPS Vehicle Taxi Truck Tracker GSM GPRS SMS Tracking on Google Map or online Platform SafeBuy Supplier Member

FOB Price: 28.00 - 38.00 USD/Piece
Supply Ability: 20,000 Piece(s) per Month
Shipping: FOB SHENZHEN, CHINA
Payment Terms: T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: giftbox

Quick Details

  • Warranty: 1Years
  • Model Number: ACE-GPS103B/TK103
  • Brand Name: ACE/ACN/OEM/Neutral
  • Use: Automotive
  • Type: Gps Tracker

Specifications

Note: In order to reply you directly & quickly, please click "Chat Now" icon to chat with us on Skype or do include your contact details (such as email, mobile phone number and website) in your message while clicking "Contact supplier" to send us email, VERY IMPORTANT!!!

GPS103B Car GPS Vehicle Taxi Truck Tracker GSM GPRS SMS Tracking on Google Map or online Platform

GPS103B Car GPS Vehicle Taxi Truck Tracker GSM GPRS SMS Tracking on Google Map or online Platform

GPS103B Car GPS Vehicle Taxi Truck Tracker GSM GPRS SMS Tracking on Google Map or online Platform

GPS103B is upgraded from GPS103A and includes all function of the latter and more advanced & practical functions, such as remote control, shock detection and siren function triggered by alarms.


The remote controller can be used to switch between armed or unarmed mode, armed and silent mode and send out SOS alarm to ask for help in case of emergency.


Main Features:


SiRF III GPS Module + GSM Quad Band 850/900/1800/1900Mhz


GPS + LBS Tracking, Position including absolute street address


External GPS and GSM Antenna


Support SMS/GPRS Track & Internet Network data transmission


Location inquiry by calling, sending SMS or on platform by GPRS


Auto Track upon Time and Distance Interval


Track on Mobile Phone by SMS W/ Google Map Link


Real-Time Track on web tracking platform by GPRS


Mode Switch between Track & Voice Surveillance Remotely


Inbuilt Card Slot, Support MicroSD(TF) card up to 2GB


Support Data Loading to PC or online tracking platform


Cut-off and Resume oil and Power remotely by SMS


SOS Panic Alarm, Report SOS by remote controller


Overspeed Alarm, Movement Alarm, Accident Alarm (Optional)


Geo-fence Alarm, GPS Blind Spot Alert


Low Battery Alarm, Power-Cut Alarm


Switch between Arm and Silent mode by Remote Controller


ACC Working Alarm, Shock Sensor Alarm (Optional)


Arming & Disarming by SMS remotely or by Remote Controller


Alarm under arming state: Door Alarm, Shock Alarm, ACC Alarm


Checking Current State, IMEI; Local Time Setting, Reset All


Configure parameters via USB Cable, GPRS Setting


Web platform and PC installation tracking software


NOTE: This GSM product is compatible with the four frequencies of 850MHz, 900MHz, 1800MHz, 1900MHz. It can be used throughout the world.


Technical Specifications:

? Applying directions: Vehicle fleet/logistics/Vehicle rental

? GPS Chip: SIRF III chip

? Network: GSM / GPRS

? GSM Frequency: 850 / 900 / 1800 / 1900 MHZ

? GSM/GPRS Module: Simcom Sim340

? GPS Sensitivity: -159 dBM

? GPS Accuracy: 5 M

? Time to First Fix:
- Cold status: 45s
- Warm status: 35s
- Hot status: 1s

? Power Supply: 12V Automotive Battery

? Power Source: Built-in Rechargeable 3.7 V 1000 mAh Li-ion Battery

? Battery Life: 80 hours standby

? Working Temperature: -20 to 55 C

? Humidity: 5% to 95% non-condensing

? Altitude Limit: 18,000 meters (60,000 feet) max

? Velocity Limit: 515 meters/second (1000 knots) max

? Acceleration Limit: Less than 4g

? Power Source: Built-in Rechargeable 3.7 V 1000 mAh Li-ion Battery

? Battery Life: 80 hours standby

? Unit Dimensions (mm): 83 (L) x 54 (W) x 26 (D)

? Unit Weight (g): 120g

? Gift Box (mm): 190 x 130 x 97. 0.78KG

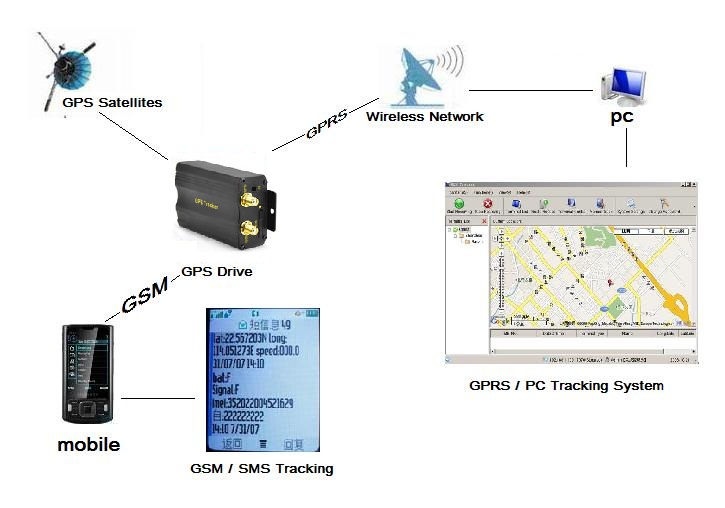

4 tracking methods:

1.SMS tracking on cellphone with a google map link to view current location on map on cellphone screen.

2.Get absolute street address by SMS

3.PC Installation software tracking.

4.Web server online tracking [Note: Service fee is extra USD10.00 per year for each device, no other costs.]

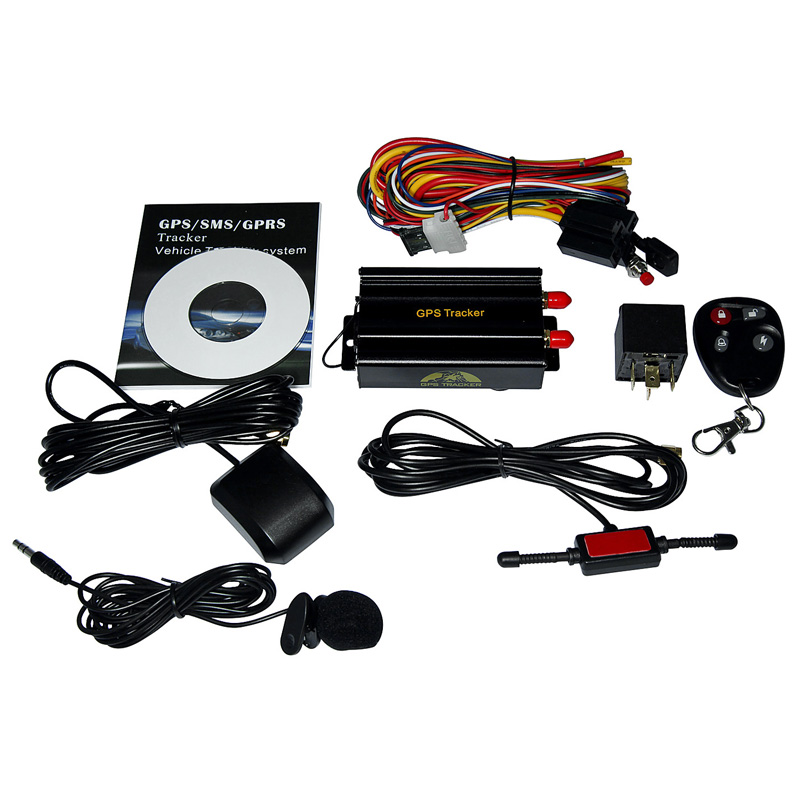

Package Includes:

1 * GPS tracker
1 * Microphone (1.5 meters)
1 * GSM antenna (3 meters)
1 * GPS antenna (3 meters)
1 * Remote controller & Relay
1 * Harness (10 Pin)
1 * User manual
1 * CD with software
