Nanjing OUVOC Lighting Technology Co., Ltd.
China Manufacturer with main products: LED Light Source, LED Commercial Lighting, LED Home Lighting, LED Control System |

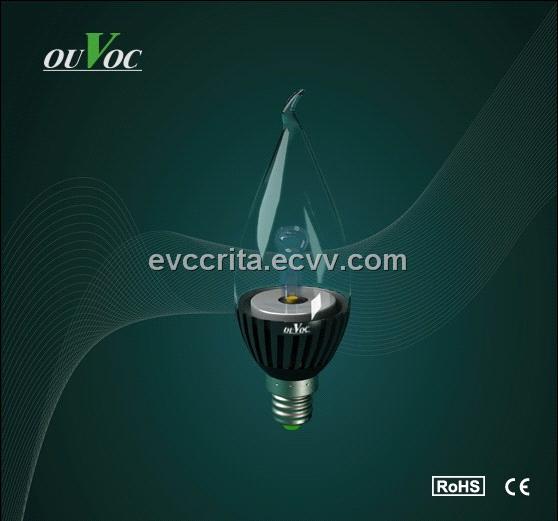

2012 hot sell led bulb light
| FOB Price: | 1.00 - 1,000.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece/Pieces per Month |
| Shipping: | Nanjing/Shanghai |
| Payment Terms: | L/C, T/T, D/A, D/P, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | CARTON/PALLET |
Specifications
Benefits of LED Technology
1/Long life
2/Reduction of maintenance costs
3/Decrease of electric costs by up to 90%
4/ Vibration resistant solid-state electronics
5/Low heat generation
6/Variety of colors available
7/Wide range of voltage applications
Packaging & Delivery
|
Packaging Detail:
|
color box, we can offer your own packing design.
|
|
Delivery Detail:
|
According to your order quantity, normally it will be about 5 working days for the samples after the payment in advance.
|
* Features:
1/LED: Super bright LEDs from Taiwan;
2/Glass Cover: More than 90% light transmittance;
3/Driver: Constant current driver with super quality;
4/High-efficiency, low power consumption, produce very little heat;
5/Super energy-saving, super strong and safe, free maintenance;
6/No UV or IR light radiation, comfortable, no noise;
7/Rapid start, no frequency;
8/Environmental Protection, No mercury and other hazardous material, fully RoHS-compliance;
9/Super long life time: 50000 hours;
10/Approvals: CE, RoHS (PSE, FCC, UL & others under application)
2/Glass Cover: More than 90% light transmittance;
3/Driver: Constant current driver with super quality;
4/High-efficiency, low power consumption, produce very little heat;
5/Super energy-saving, super strong and safe, free maintenance;
6/No UV or IR light radiation, comfortable, no noise;
7/Rapid start, no frequency;
8/Environmental Protection, No mercury and other hazardous material, fully RoHS-compliance;
9/Super long life time: 50000 hours;
10/Approvals: CE, RoHS (PSE, FCC, UL & others under application)
Why Use LED?
Light emitting diodes (LEDs) have been used for years,
primarily in the electronics industry for circuit board mounted indicator lights.
Increased performances (brightness), lower production costs and the availability
of a variety of colors have led to the successful use of LEDs in replacing incandescent
lamps found in architectural, commercial and industrial applications.
|
TECHNICAL PARAMETERS
|
|
|
Model
|
YS-B09
|
|
Product Color
|
Slver grey
|
|
Working Voltage
|
AC 100-240V
|
|
Input Power
|
2.5W
|
|
PFC
|
>0.55
|
|
Power Supply Efficiency
|
>70%
|
|
DC500V Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
50Hz/4kV/5mA
|
|
Luminous Flux
|
>100lm(3000K)
|
|
>112lm(6000K)
|
|
|
Light Decay
|
≤5.2%(6000h)
|
|
Color Temperature
|
2700K~6500K
|
|
CRI(Color Rendering Index)
|
Ra>80
|
|
Beam Angle
|
200°±10°
|
|
Transmittance
|
>90%
|
|
Base Type
|
E14 / E17
|
|
Surface Temperature
|
≤60ºC
|
|
Working Temperature
|
-20ºC~+45ºC
|
|
Working Humidity
|
≤90%
|
|
Storage Temperature
|
-40ºC~+55ºC
|
|
Lifespan
|
40000/h
|
|
Measurement
|
Ø35.5mm H105mm
|
|
Sell Pack Packaging (mm)
|
43 × 43 × 132
|
|
Master Pack Packaging (mm)
|
500 × 450 × 440
|
|
Product Weight (Kg)
|
0.0372Kg
|
|
Gross Weight (Kg)
|
0.0564Kg
|
|
Certificate
|
CE RoHS
|
