mmo titanium anode

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

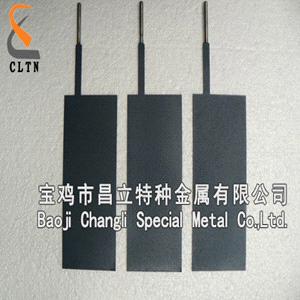

Titanium Anode for Sodium Hypochlorite Generator
Material	Gr1 Titanium as substrate, mixed Ruthenium-Iridium-Titanium oxide or mixed Ruthenium-Iridium-Stannum-Titanium oxide as coating
Technology	Sand blasting, Acid washing and Brush Coating
Dimension & Shape	Different dimension and shape is available, or according to custom design/drawing
Working Parameter	Current density≤2000A/M2 Temperature<60°C Max content of Fluoride ion is 200PPM
Working Equipment	Sodium Hypochlorite Generator
Working Principle	NaCL+H2O=NaCLO+H2↑ NaClO + H2O = HClO + NaOH HClO → HCl + [O] HCl + NaOH =NaCL+H2O
Electrolyte	Salt water / Saline solution/ Brine/ Sea water
Features	High current efficiency property High catalytic property Lasting working life Light weight electrodes Keep the operating voltage stably Produce NaCLO & Chlorine high efficiency
Applications	Sodium Hypochlorite(NaClO) production
Remarks	Titanium anode also called MMO anode,DSA & Insoluble anode Cathode also be provided
Packing	Plastic or paper as inside, carton or plywood case as outside, or according to client's demand
MOQ	Flexible small sample order acceptable
