Henan Quanshun Flow Control Science & Technology Co., Ltd.
China Manufacturer with main products: Segment Ball Valve, Bi Directional Sealing Valve, Slurry Valve, Y Type Globe Valve, Semi-Ball Valve, Tank Bottom Angle Valve, Ceramic Valve,... |

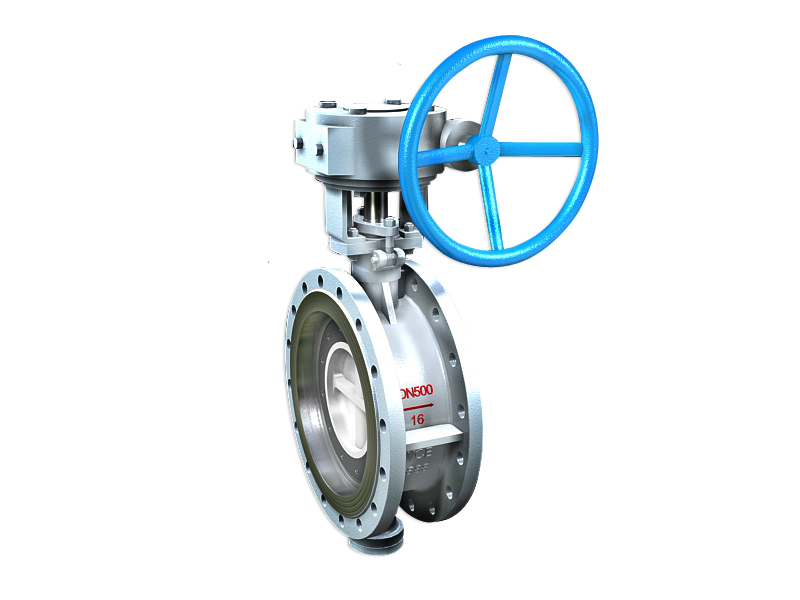

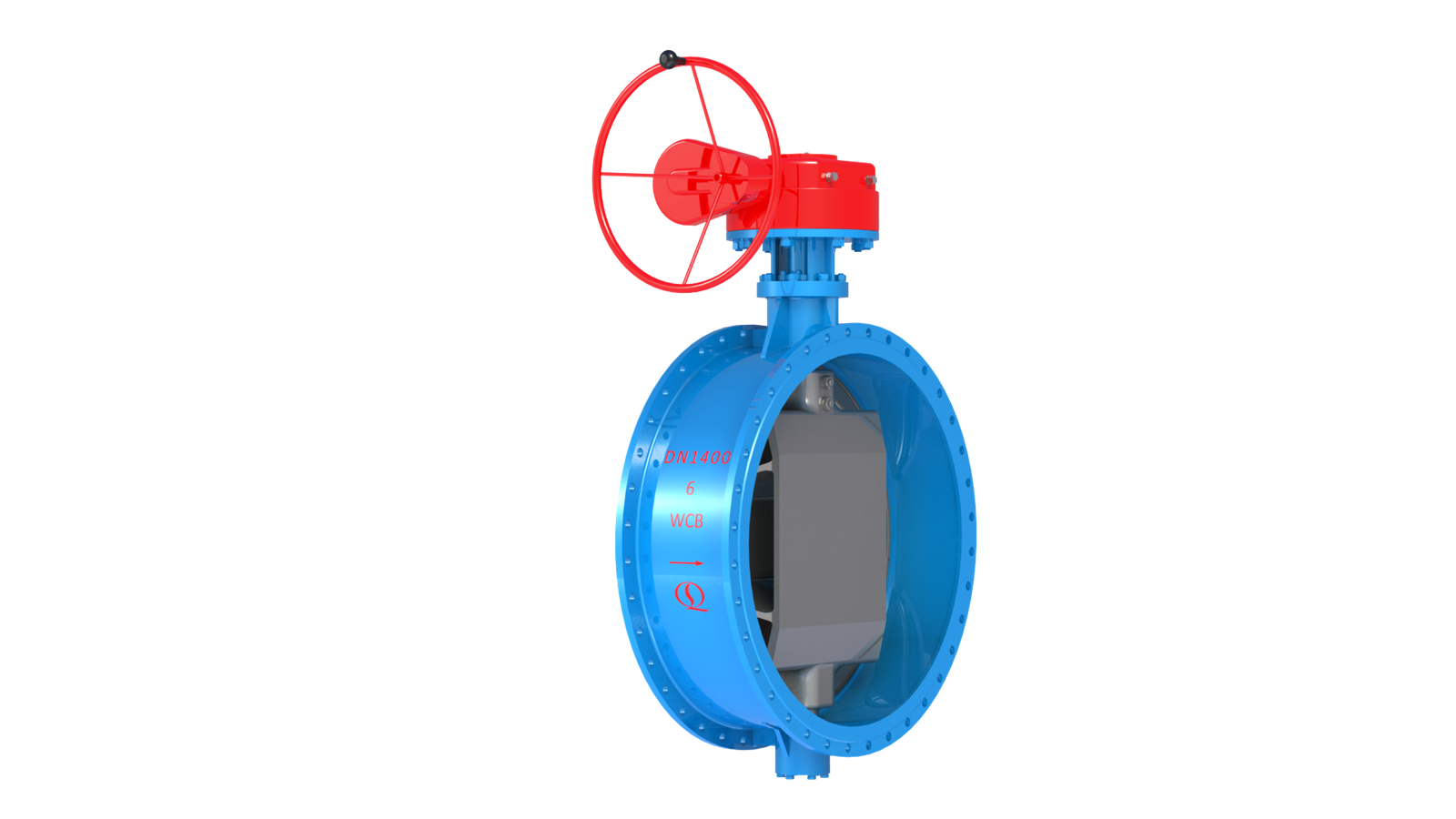

Bi-Directional Metal Hard Sealed Butterfly Valve
| Supply Ability: | 200 Set(s) per Week |
|---|---|
| Shipping: | By Sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | wooden case, |
Quick Details
- Brand Name: QUANSHUN
- Temperature of Media: Normal Temperature
- Material: Casting
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Model Number: BQ340H
- Port Size: DN800
- Media: Water
- Power: Manual
- Structure: Ball
Specifications
Bidirectional Metal Sealing Butterfly Valve Is developed based on the mechanism of the butterfly valve and semi ball valve. the special butterfly valve can be used at inlet of the water pump, piping network system, recovery stem, high water tank, sewage system and the back flow prevention to shut off or control the pipeline.
Benefits
1. Designed with bidirectional sealing structure, the installation of the bidirectional rotary ball valve will not be restricted by the direction of the fluid.
2. since the metal sealed bidirectional rotary ball valve is offered with self-sealing device, reliable sealing performance can be realized under the pressure from medium.
3. Powerful specific pressure of sealing can be obtained the valve is installed on the direction in opposite to that of the fluid. the pressure acts on the valve seat of the bidirectional rotary ball valve. the contact area of the point action is annular,
4. the rotary ball valve has long service life due to wear compensation.
5. the unique rotational structure, as well as the sphere-conical sealing surface of the valve seat, makes for the cleaning function the solid particle will be crushed when the electric operated bidirectional rotary ball valve is opened or closed.
Technical Parameters
Body material: WCB, CF8, CF8M, CF3, CF3M, etc.
Sealing material: Hard alloy
Connection type: Flange and weld
Operating type: Manual, electric or pneumatic
Nominal Diameter: 2"~40" DN50~DN2000
Pressure: Class 150~Class 300 PN1.0~PN4.0
Application
Municipal Engineering
Circulating water system
Water treatment system
Fire extinguisher system
Benefits
1. Designed with bidirectional sealing structure, the installation of the bidirectional rotary ball valve will not be restricted by the direction of the fluid.
2. since the metal sealed bidirectional rotary ball valve is offered with self-sealing device, reliable sealing performance can be realized under the pressure from medium.
3. Powerful specific pressure of sealing can be obtained the valve is installed on the direction in opposite to that of the fluid. the pressure acts on the valve seat of the bidirectional rotary ball valve. the contact area of the point action is annular,
4. the rotary ball valve has long service life due to wear compensation.
5. the unique rotational structure, as well as the sphere-conical sealing surface of the valve seat, makes for the cleaning function the solid particle will be crushed when the electric operated bidirectional rotary ball valve is opened or closed.
Technical Parameters
Body material: WCB, CF8, CF8M, CF3, CF3M, etc.
Sealing material: Hard alloy
Connection type: Flange and weld
Operating type: Manual, electric or pneumatic
Nominal Diameter: 2"~40" DN50~DN2000
Pressure: Class 150~Class 300 PN1.0~PN4.0
Application
Municipal Engineering
Circulating water system
Water treatment system
Fire extinguisher system
We can customize the driving method and valve body material according to your different needs
You will have Quanshun Flow Control's complete after-sales service
You will have Quanshun Flow Control's complete after-sales service
