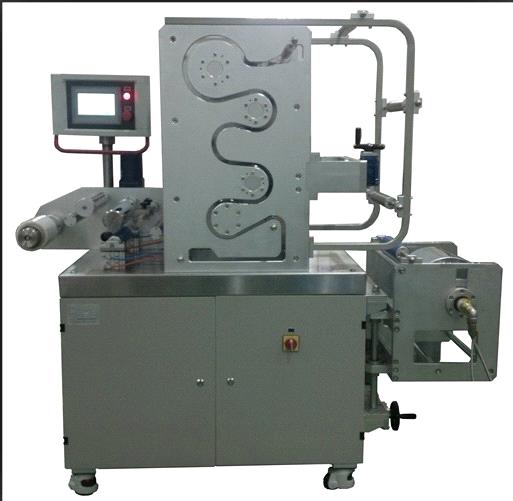

Mini precise multi functional film processing unit

FOB Price:	25,000.00 - 30,000.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Place of Origin:	Guangdong in China
Packaging Details:	wooden case

Specifications

Main technical parameters
Type	Unit	F-OMU-200	F- OMU-300
Roll width	mm	200	300
Drawing point		1
Drawing ratio		10:1
Film effective width	mm	0-100
Film effective thickness	mm	0-0.02
Max. winder diameter	mm	200
Roll drive mode		Servo motor
Preheating roll temp. control mode		High temp. oil
Annealing roll temp. control mode		Conduction oil
Max. temp. of die heater	℃	200
Heating/cooling		Electrical heating/water cooling
Temp. measuring accuracy	℃	±1
Max. temp.	℃	180
Total heating power	kW	13	18
Total power	kW	18	23
L×W×H	mm	2350×2140×2020
Gross weight	kg	1000	1200
Standard configurations
Frame assembly	Euro aluminum alloy frame and protective door, 304 stainless steel integral desktop, high strength anodic oxidation treated side board, FootMaster integral high bearing anti shock trundle
Idle roll	Aluminum alloy roll with anodic oxidation treated roll surface, stainless steel roll shaft
Preheating roll	Japan Panasonic servo motor and reduction box, chrome coated and mirror polished roll
Annealing roll
Chill roll
Preheating roll	Silicon rubber coated roll and stainless roll shaft
Rubber roll	Silicon rubber coated roll and stainless roll shaft
Distance control device for drawing rolls	Japan Panasonic servo motor and reduction box, ball screw transmission with line displacement transducer
Cooling press roll	Silicon rubber coated roll and stainless roll shaft
Oil type die heater	Dongguan Shini die heater
Control system	B&R PLC, Siemens 7 inch touch screen
